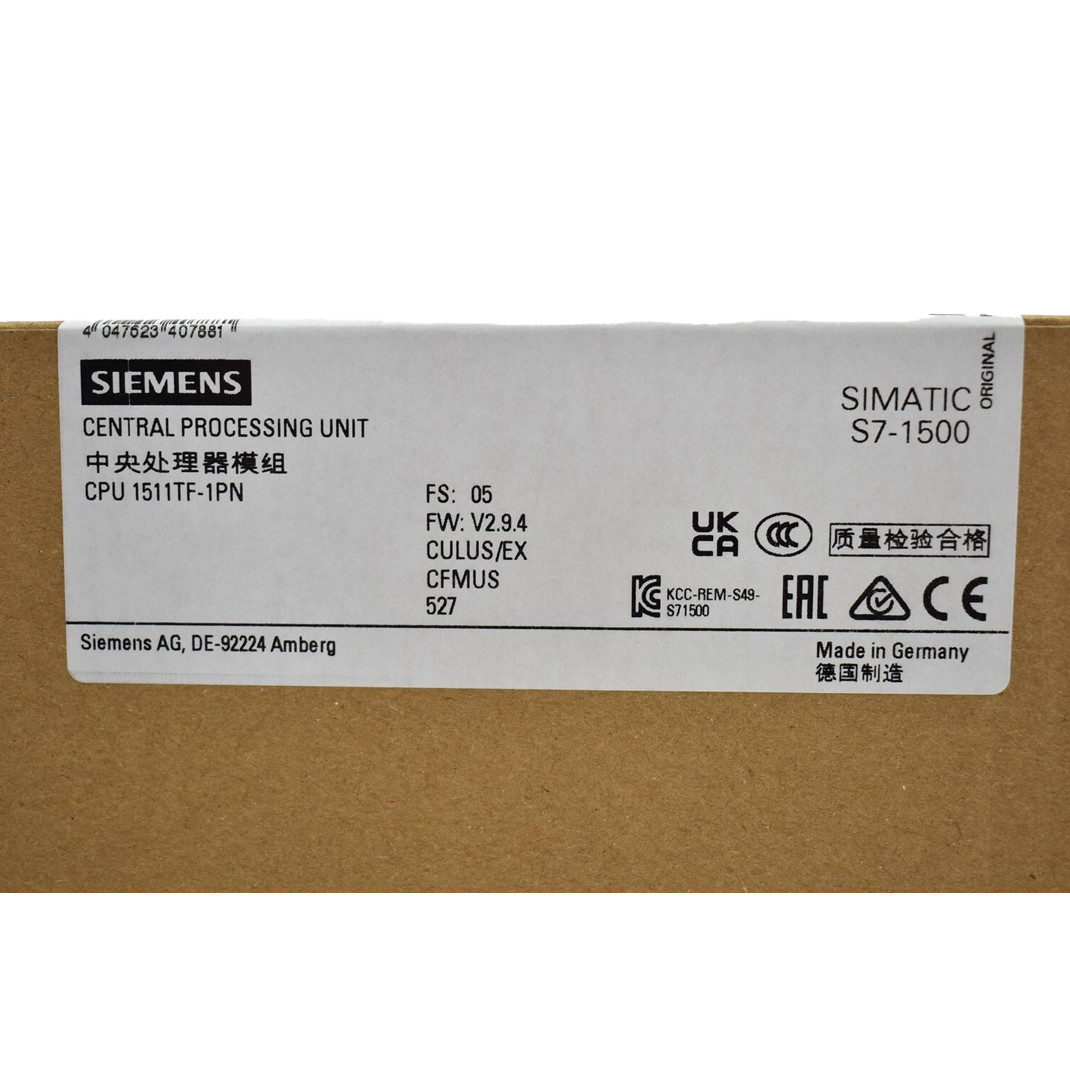

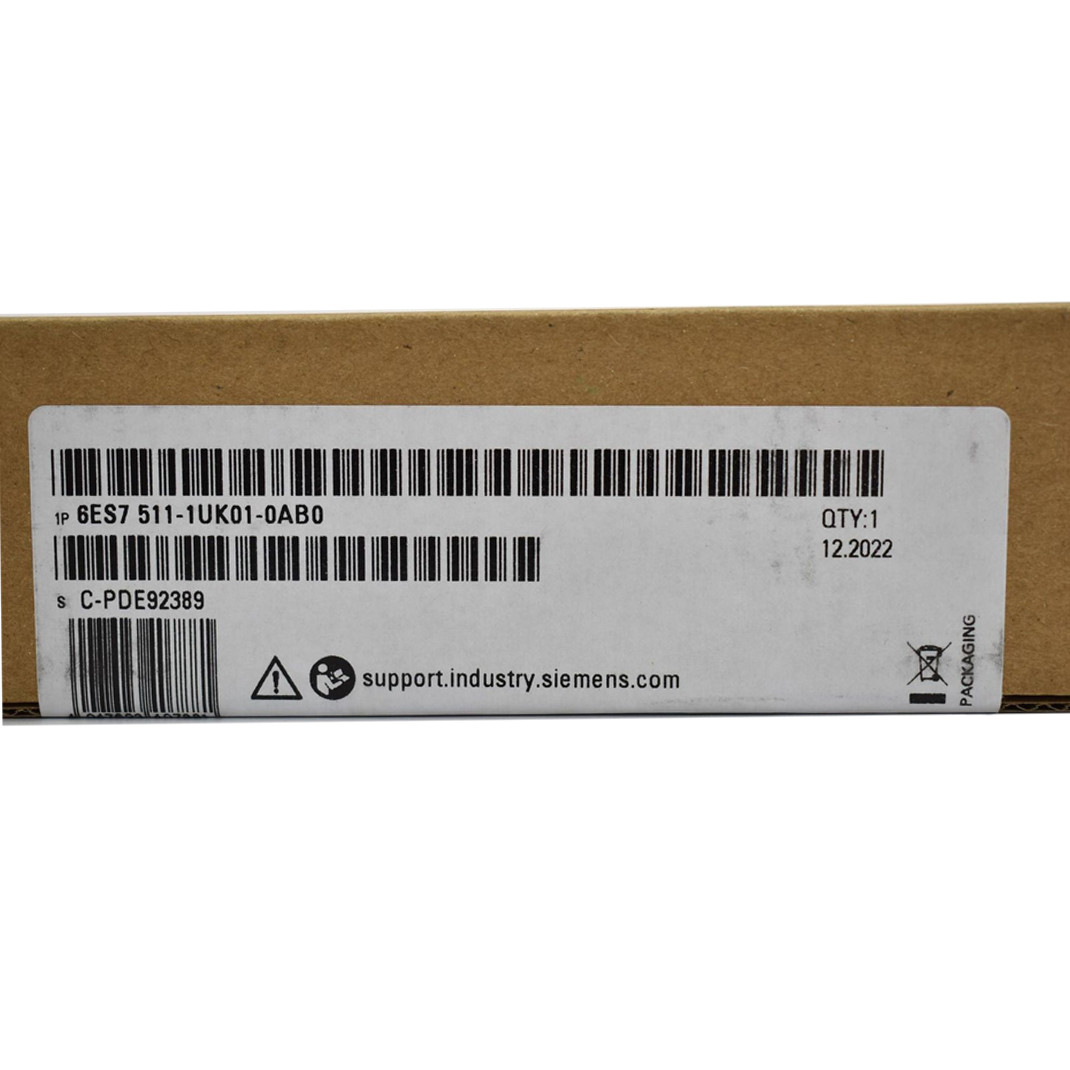

SIEMENS PLC SIMATIC S7-1500 CPU 1511TF-1 PN 6ES7511-1UK01-0AB0 MEMORY CARD REQUIRED
Product Introduction:
The SIEMENS PLC SIMATIC S7-1500 CPU 1511-1 UK 6ES7511-1UK01-0AB0 is a central processing unit (CPU) designed specifically for industrial automation applications. This CPU is part of the SIEMENS SIMATIC S7-1500 series, known for its advanced functionality, high performance, and reliability.
Product Information and Specifications:
- Model: CPU 1511-1 UK 6ES7511-1UK01-0AB0
The CPU 1511-1 UK is equipped with a powerful processor that ensures fast and efficient execution of control programs. It supports multiple programming languages, including ladder logic, function blocks, and structured text, providing flexibility and ease of use for complex control tasks.
In terms of memory capacity, the CPU 1511-1 UK offers ample storage space for both program and data. While specific details were not provided in the query, typical configurations of the CPU include program memory ranging from 200 KB to 500 KB and data memory ranging from 200 KB to 500 KB. This memory capacity allows users to store their control programs and necessary data structures for the PLC's operation.
Designed to operate in demanding industrial environments, the CPU 1511-1 UK delivers reliable and precise control for applications such as manufacturing, process control, and machine automation. It supports a wide range of communication interfaces, enabling seamless integration with other devices and systems within the automation network.
The CPU 1511-1 UK is typically programmed and configured using Siemens' TIA Portal (Totally Integrated Automation Portal) software. The TIA Portal provides a comprehensive engineering environment for efficient programming, simulation, and diagnostics, ensuring easy development and maintenance of automation projects.
Product Attributes:
- Model: CPU 1511-1 UK 6ES7511-1UK01-0AB0
- Processor: Powerful processor for fast and efficient control program execution
- Programming Languages: Supports ladder logic, function blocks, and structured text
- Memory Capacity: Sufficient storage space for program and data
- Communication Interfaces: Supports various communication interfaces
- Engineering Software: Programmed and configured using Siemens' TIA Portal
- Suitable for: Manufacturing, process control, and machine automation applications
In summary, the SIEMENS PLC SIMATIC S7-1500 CPU 1511-1 UK 6ES7511-1UK01-0AB0 is a reliable CPU with advanced features, ample memory capacity, and seamless communication capabilities. It provides efficient and precise control for various industrial processes, making it suitable for a wide range of industrial automation applications.
| General information |
| Product type designation | CPU 1511TF-1 PN |
| HW functional status | FS04 |
| Firmware version | V2.9 |
| Product function |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Isochronous mode | Yes; Distributed and central; with minimum OB 6x cycle of 625 µs (distributed) and 1 ms (central) |
| Engineering with |
| ● STEP 7 TIA Portal configurable/integrated from version | V17 (FW V2.9) / V14 (FW V2.0) or higher |
| Configuration control |
| via dataset | Yes |
| Display |
| Screen diagonal [cm] | 3.45 cm |
| Control elements |
| Number of keys | 6 |
| Mode selector switch | 1 |
| Supply voltage |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Mains buffering |
| ● Mains/voltage failure stored energy time | 5 ms |
| ● Repeat rate, min. | 1/s |
| Input current |
| Current consumption (rated value) | 0.7 A |
| Inrush current, max. | 1.9 A; Rated value |
| I²t | 0.02 A²·s |
| Power |
| Infeed power to the backplane bus | 10 W |
| Power consumption from the backplane bus (balanced) | 5.5 W |
| Power loss |
| Power loss, typ. | 5.7 W |
| Memory |
| Number of slots for SIMATIC memory card | 1 |
| SIMATIC memory card required | Yes |
| Work memory |
| ● integrated (for program) | 225 kbyte |
| ● integrated (for data) | 1 Mbyte |
| Load memory |
| ● Plug-in (SIMATIC Memory Card), max. | 32 Gbyte |
| Backup |
| ● maintenance-free | Yes |
| CPU processing times |
| for bit operations, typ. | 60 ns |
| for word operations, typ. | 72 ns |
| for fixed point arithmetic, typ. | 96 ns |
| for floating point arithmetic, typ. | 384 ns |
| CPU-blocks |
| Number of elements (total) | 4 000; Blocks (OB, FB, FC, DB) and UDTs |
| DB |
| ● Number range | 1 ... 60 999; subdivided into: number range that can be used by the user: 1 ... 59 999, and number range of DBs created via SFC 86: 60 000 ... 60 999 |
| ● Size, max. | 1 Mbyte; For DBs with absolute addressing, the max. size is 64 KB |
| FB |
| ● Number range | 0 ... 65 535 |
| ● Size, max. | 150 kbyte |
| FC |
| ● Number range | 0 ... 65 535 |
| ● Size, max. | 150 kbyte |
| OB |
| ● Size, max. | 150 kbyte |
| ● Number of free cycle OBs | 100 |
| ● Number of time alarm OBs | 20 |
| ● Number of delay alarm OBs | 20 |
| ● Number of cyclic interrupt OBs | 20; With minimum OB 3x cycle of 500 µs |
| ● Number of process alarm OBs | 50 |
| ● Number of DPV1 alarm OBs | 3 |
| ● Number of isochronous mode OBs | 2 |
| ● Number of technology synchronous alarm OBs | 2 |
| ● Number of startup OBs | 100 |
| ● Number of asynchronous error OBs | 4 |
| ● Number of synchronous error OBs | 2 |
| ● Number of diagnostic alarm OBs | 1 |
| Nesting depth |
| ● per priority class | 24; Up to 8 possible for F-blocks |
| Counters, timers and their retentivity |
| S7 counter |
| ● Number | 2 048 |
| Retentivity |
| — adjustable | Yes |
| IEC counter |
| ● Number | Any (only limited by the main memory) |
| Retentivity |
| — adjustable | Yes |
| S7 times |
| ● Number | 2 048 |
| Retentivity |
| — adjustable | Yes |
| IEC timer |
| ● Number | Any (only limited by the main memory) |
| Retentivity |
| — adjustable | Yes |
| Data areas and their retentivity |
| Retentive data area (incl. timers, counters, flags), max. | 128 kbyte; In total; available retentive memory for bit memories, timers, counters, DBs, and technology data (axes): 88 KB |
| Extended retentive data area (incl. timers, counters, flags), max. | 1 Mbyte; When using PS 6 0W 24/48/60 V DC HF |
| Flag |
| ● Size, max. | 16 kbyte |
| ● Number of clock memories | 8; 8 clock memory bit, grouped into one clock memory byte |
| Data blocks |
| ● Retentivity adjustable | Yes |
| ● Retentivity preset | No |
| Local data |
| ● per priority class, max. | 64 kbyte; max. 16 KB per block |
| Dimensions |
| Width | 35 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weights |
| Weight, approx. | 430 g |
|
|
