SIEMENS PLC SIMATIC S7-1500 DQ 32X24VDC/0.5A ST 6ES7522-1BL01-0AB0 SINGLE-CHANNEL

Name: SIEMENS PLC SIMATIC S71500 DQ 32X24VDC05A ST 6ES75221BL010AB0 SINGLECHANNEL
Brand: SIEMENS
Price: 1 USD

Brand Name : SIEMENS

Model Number : 6ES7522-1BL01-0AB0

Certification : CE

Place of Origin : Germany

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 100

Delivery Time : 10-12Days

Packaging Details : 15,10 x 15,40 x 4,60

Cpu Type : S7-1500

Number Of Analog Outputs : Up to 8 AO

Number Of Analog Inputs : Up to 8 AI

Dimensions : 130 x 150 x 75 mm

Number Of Digital Inputs : Up to 16 DI

Number Of Digital Outputs : Up to 16 DO

Memory : Up to 2 MB

Programming Software : TIA Portal

Certifications : CE, UL, CSA

Power Supply : 24V DC

Weight : 0.5 kg

Operating Temperature : 0-60°C

Contact Now

SIEMENS PLC SIMATIC S7-1500 DQ 32X24VDC/0.5A ST 6ES7522-1BL01-0AB0 SINGLE-CHANNEL

Product Introduction:
The SIEMENS PLC SIMATIC S7-1500 DQ 32X24VDC/0.5A ST 6ES7522-1BL01-0AB0 is a digital output module designed for the SIEMENS SIMATIC S7-1500 series. It features 32 digital output channels capable of handling outputs at 24VDC with a maximum current of 0.5A per channel. The module operates on a single-channel basis, offering individual control for each output.

Product Information and Specifications:
- Model: DQ 32X24VDC/0.5A ST 6ES7522-1BL01-0AB0

The DQ 32X24VDC/0.5A ST module provides 32 digital output channels designed to handle outputs operating at 24VDC. Each channel can deliver a maximum current of 0.5A. This module operates on a single-channel basis, meaning each output can be independently controlled and monitored.

Product Attributes:
- Model: DQ 32X24VDC/0.5A ST 6ES7522-1BL01-0AB0
- Digital Outputs: 32 channels
- Output Voltage: 24VDC
- Maximum Current: 0.5A per channel
- Operation Mode: Single-channel (individual control for each output)

In summary, the SIEMENS PLC SIMATIC S7-1500 DQ 32X24VDC/0.5A ST 6ES7522-1BL01-0AB0 is a digital output module with 32 channels designed for outputs operating at 24VDC. Each channel can deliver a maximum current of 0.5A. The module operates on a single-channel basis, allowing for individual control and monitoring of each output. It is suitable for industrial applications where precise and independent control of electrical outputs at 24VDC with a maximum current of 0.5A per channel is required.

Product

Article Number (Market Facing Number)

6ES7522-1BL01-0AB0

Product Description

SIMATIC S7-1500, digital output module DQ 32x24V DC/0.5A HF; 32 channels in groups of 8; 4 A per group; single-channel diagnostics; substitute value, switching cycle counter for connected actuators. the module supports the safety-oriented shutdown of load groups up to SIL2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015. front connector (screw terminals or push-in) to be ordered separately

Product family

SM 522 digital output modules

Product Lifecycle (PLM)

PM300:Active Product

Price data

Region Specific PriceGroup / Headquarter Price Group

219 / 219

List Price

Show prices

Customer Price

Show prices

Surcharge for Raw Materials

None

Metal Factor

None

Delivery information

Export Control Regulations

AL : N / ECCN : 9N9999

Estimated dispatch time (Working Days)

1 Day/Days

Net Weight (kg)

0,321 Kg

Packaging Dimension

15,10 x 15,40 x 4,70

Package size unit of measure

Quantity Unit

1 Piece

Packaging Quantity

Additional Product Information

EAN

4047623405924

UPC

804766234446

Commodity Code

85389091

LKZ_FDB/ CatalogID

ST73

Product Group

4501

Group Code

R151

Country of origin

Germany

Compliance with the substance restrictions according to RoHS directive

Since: 13.11.2015

Product class

A: Standard product which is a stock item could be returned within the returns guidelines/period.

WEEE (2012/19/EU) Take-Back Obligation

Yes

REACH Art. 33 Duty to inform according to the current list of candidates

Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)

Silicic acid, lead s... CAS-No. 11120-22-2 > 0, 1 % (w / w)

4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)

Lead monoxide (lead ... CAS-No. 1317-36-8 > 0, 1 % (w / w)

SCIP number

cdfd47a6-ce55-49c0-95cb-ca56dd2d1ad6

Classifications

SIEMENS PLC SIMATIC S7-1500 DQ 32X24VDC/0.5A ST 6ES7522-1BL01-0AB0 SINGLE-CHANNEL

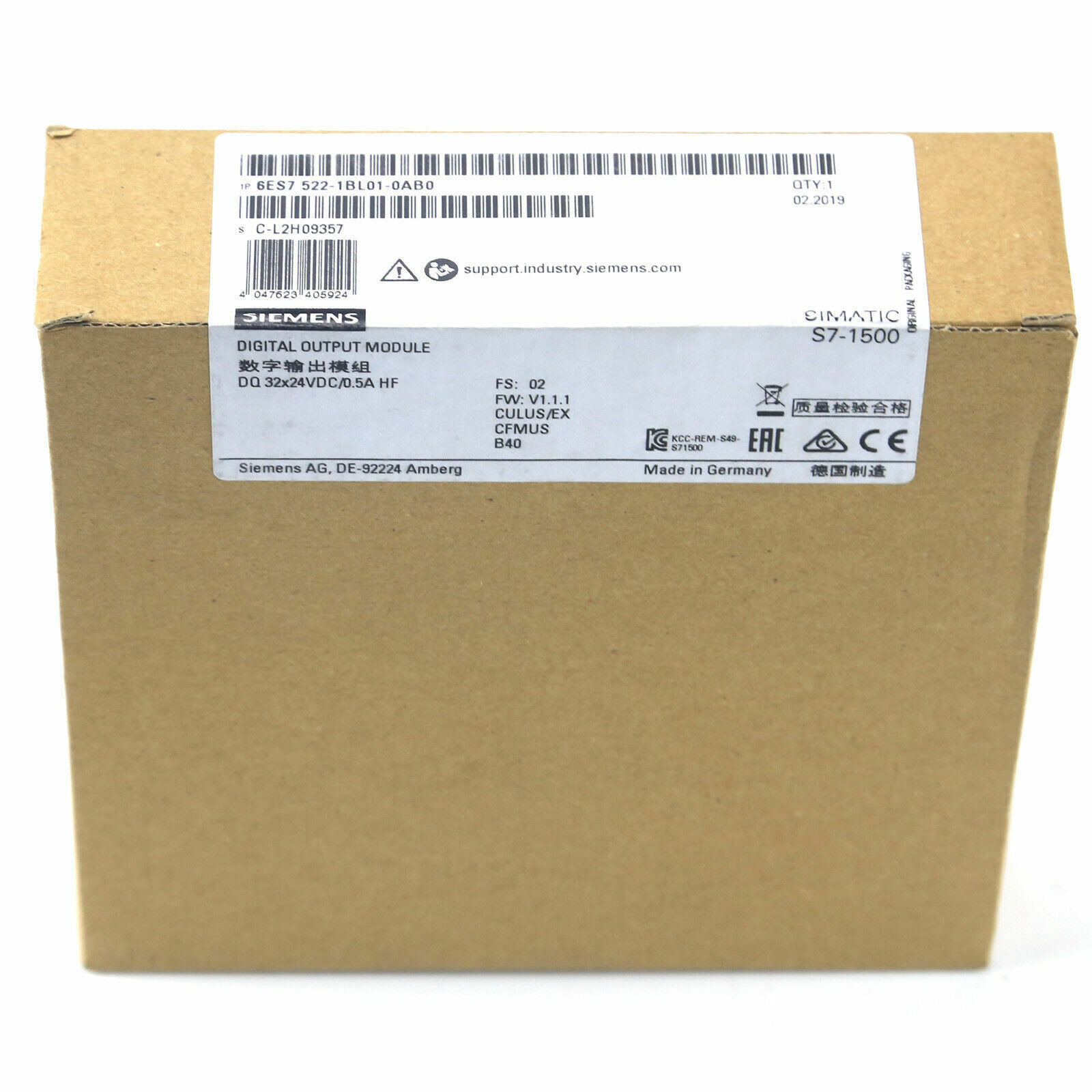

SIEMENS PLC SIMATIC S7-1500 DQ 32X24VDC/0.5A ST 6ES7522-1BL01-0AB0 SINGLE-CHANNEL Images
