SIEMENS PLC SIMATIC S7-1500 CM PTP RS422/485 BA 6ES7540-1AB00-0AA0 COMMUNICATION MODULE FOR SERIAL CONNECTION
Certainly! Here is some additional information about the SIEMENS PLC SIMATIC S7-1500 CM PTP RS422/485 BA 6ES7540-1AB00-0AA0 communication module:
1. Module Type: The 6ES7540-1AB00-0AA0 module belongs to the communication module category in the SIEMENS SIMATIC S7-1500 series. It is designed to expand the communication capabilities of the S7-1500 PLC system.
2. Communication Interface: The module supports RS422/485 communication interfaces. RS422 is a differential serial communication standard that allows for long-distance transmission and noise immunity. RS485 is a similar standard that supports multi-drop communication, enabling multiple devices to be connected on the same bus.
3. Serial Communication: With the SIMATIC S7-1500 CM PTP RS422/485 BA module, the S7-1500 PLC can establish serial communication connections with external devices and systems. Serial communication is commonly used in various industrial applications and allows for data exchange, control signals, and integration with devices such as barcode scanners, printers, HMI panels, and more.
4. Functionality: The module provides the necessary hardware and software components to enable the PLC to communicate with devices using RS422/485 interfaces. It supports protocols and communication parameters commonly used in serial communication, allowing for reliable and efficient data transmission.
5. Configuration and Integration: The module can be easily integrated into the S7-1500 PLC system. It is typically configured using the TIA Portal engineering software provided by Siemens. The software allows users to set communication parameters, define data exchange formats, and establish communication channels between the PLC and external devices.
6. Applications: The SIMATIC S7-1500 CM PTP RS422/485 BA module is well-suited for applications where serial communication is required, such as industrial automation, process control, machine-to-machine communication, and data acquisition systems. It enables seamless integration of external devices into the PLC system, enhancing overall system functionality and flexibility.
For more detailed information, including installation instructions, configuration details, and specific usage scenarios, it is recommended to consult the product documentation provided by Siemens or contact their technical support. They can provide comprehensive guidance and support related to the module's capabilities, programming, and integration with other system components.
| Product |
| Article Number (Market Facing Number) | 6ES7540-1AB00-0AA0 |
| Product Description | SIMATIC S7-1500, CM PTP RS422/485 BA Communication module for Serial connection RS422,RS485 Freeport, 3964 (R), USS, 19200 Kbit/s, 15-Pin D-sub socket |
| Product family | CM PtP |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data |
| Region Specific PriceGroup / Headquarter Price Group | 219 / 219 |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Materials | None |
| Metal Factor | None |
| Delivery information |
| Export Control Regulations | AL : N / ECCN : N |
| Estimated dispatch time (Working Days) | 1 Day/Days |
| Net Weight (kg) | 0,268 Kg |
| Packaging Dimension | 15,10 x 15,20 x 4,70 |
| Package size unit of measure | CM |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | 4025515079934 |
| UPC | 887621139537 |
| Commodity Code | 85176200 |
| LKZ_FDB/ CatalogID | ST73 |
| Product Group | 4502 |
| Group Code | R151 |
| Country of origin | Germany |
| Compliance with the substance restrictions according to RoHS directive | Since: 25.02.2013 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| REACH Art. 33 Duty to inform according to the current list of candidates | |
| SCIP number | 655ce051-a943-440f-bc85-79da563995f3 |
|
|

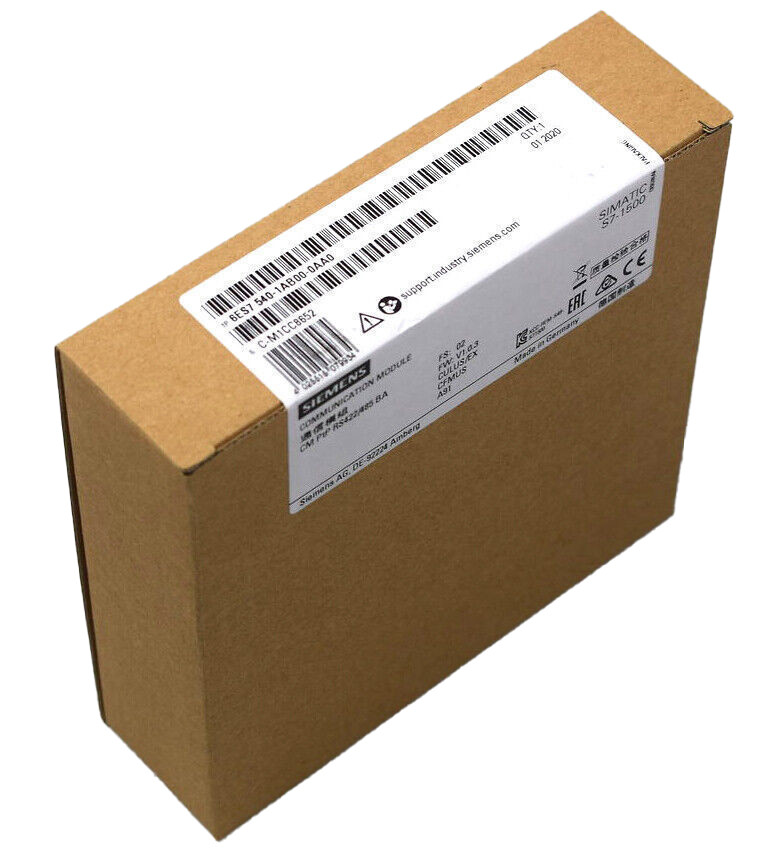

SIEMENS PLC SIMATIC S7-1500 CM PTP RS422/485 BA 6ES7540-1AB00-0AA0 COMMUNICATION MODULE FOR SERIAL CONNECTION Images
|
