SIEMENS PLC SIMATIC S7-1500 CM PTP RS422/485 HF 6ES7541-1AB00-0AB0 SERIAL CONNECTION RS422 AND RS485
Product Introduction:
The SIEMENS PLC SIMATIC S7-1500 CM PTP RS422/485 HF 6ES7541-1AB00-0AB0 is a communication module designed for the SIEMENS SIMATIC S7-1500 series. This module enables serial communication over RS422 and RS485 interfaces, providing flexible connectivity options for devices using these protocols.
Product Information and Specifications:
- Model: SIMATIC S7-1500 CM PTP RS422/485 HF 6ES7541-1AB00-0AB0
- Module Type: Communication
- Communication Interfaces: RS422 and RS485
Product Attributes:
- Model: SIMATIC S7-1500 CM PTP RS422/485 HF 6ES7541-1AB00-0AB0
- Module Type: Communication
- Communication Interfaces: RS422 and RS485
The SIMATIC S7-1500 CM PTP RS422/485 HF module is designed to enhance the communication capabilities of the SIEMENS SIMATIC S7-1500 PLC system. It enables serial communication over both RS422 and RS485 interfaces, which are commonly used in industrial applications.
RS422 is a differential serial communication standard that supports point-to-point connections. It provides higher data rates and longer transmission distances compared to RS232. RS485, on the other hand, is a differential serial communication standard that supports multi-point communication, allowing multiple devices to be connected on the same bus.
With the SIMATIC S7-1500 CM PTP RS422/485 HF module, the S7-1500 PLC can establish serial communication links with devices that utilize RS422 and RS485 interfaces. This enables data exchange, control, and integration with a wide range of industrial devices such as sensors, actuators, motor drives, and other equipment.
For detailed information on installation, configuration, and usage of the SIMATIC S7-1500 CM PTP RS422/485 HF module, it is recommended to refer to the product documentation provided by Siemens or contact their technical support. They can provide specific guidance on leveraging the module's features, including the use of RS422 and RS485 interfaces, and assist with any inquiries related to its specifications and attributes.
| Product |
| Article Number (Market Facing Number) | 6ES7541-1AB00-0AB0 |
| Product Description | SIMATIC S7-1500, CM PTP RS422/485 HF Communication module for Serial connection RS422 and RS485, Freeport, 3964 (R), USS, MODBUS RTU Master, Slave, 115200 Kbit/s, 15-Pin D-sub socket |
| Product family | CM PtP |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data |
| Region Specific PriceGroup / Headquarter Price Group | 219 / 219 |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Materials | None |
| Metal Factor | None |
| Delivery information |
| Export Control Regulations | AL : N / ECCN : N |
| Estimated dispatch time (Working Days) | 1 Day/Days |
| Net Weight (kg) | 0,272 Kg |
| Packaging Dimension | 14,90 x 15,20 x 4,70 |
| Package size unit of measure | CM |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | 4025515079941 |
| UPC | 887621139544 |
| Commodity Code | 85176200 |
| LKZ_FDB/ CatalogID | ST73 |
| Product Group | 4502 |
| Group Code | R151 |
| Country of origin | Germany |
| Compliance with the substance restrictions according to RoHS directive | Since: 25.02.2013 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| REACH Art. 33 Duty to inform according to the current list of candidates | |
| SCIP number | 8949d844-53c5-4979-86d7-0cf0df009923 |
| Classifications |
|
|

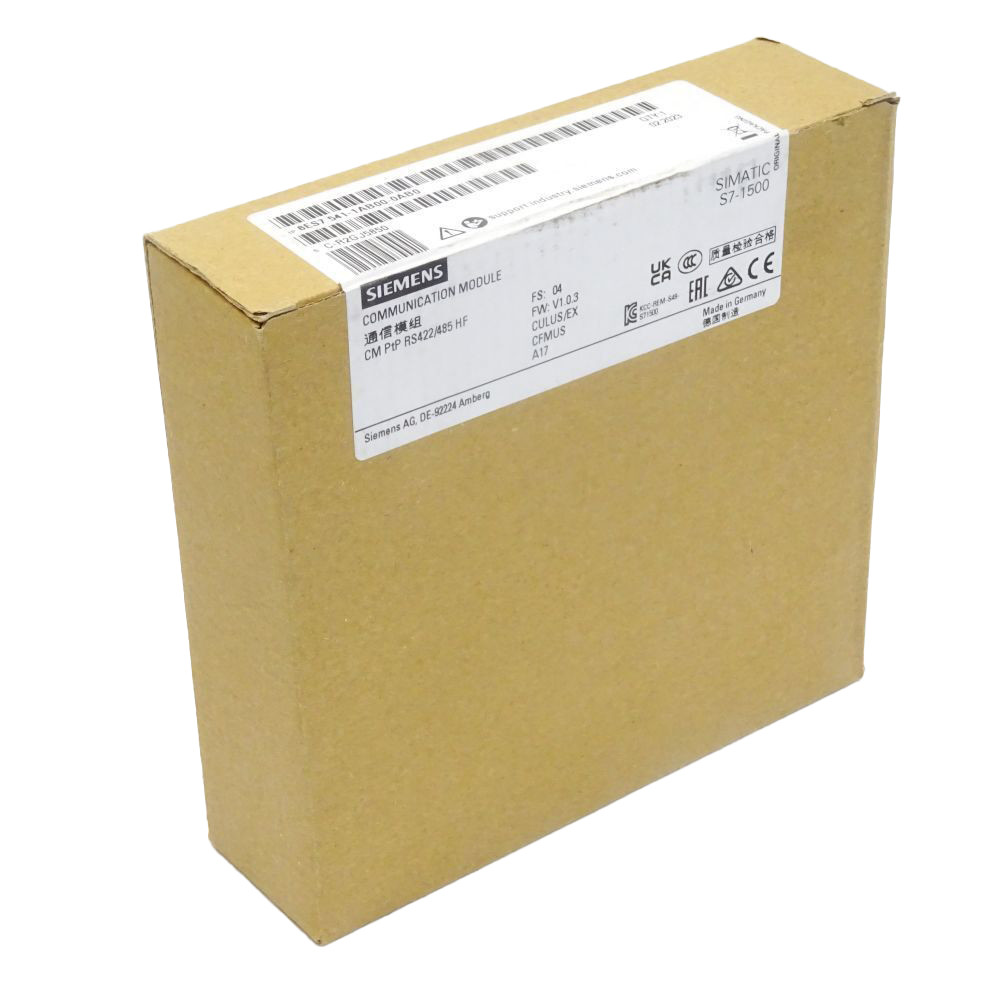

SIEMENS PLC SIMATIC S7-1500 CM PTP RS422/485 HF 6ES7541-1AB00-0AB0 SERIAL CONNECTION RS422 AND RS485 Images
|
