| General information |

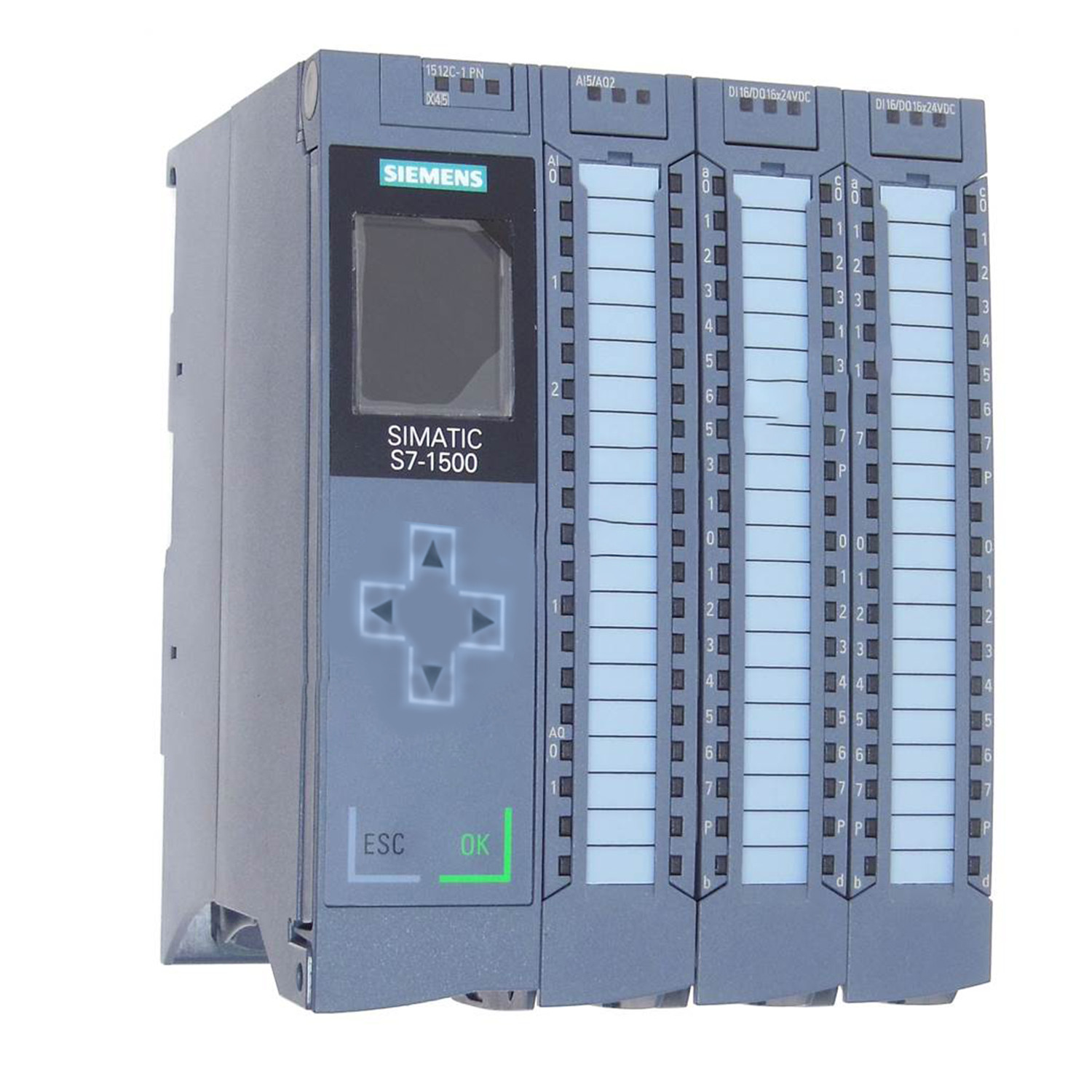

| Product type designation | CPU 1512C-1 PN |
| HW functional status | FS03 |
| Firmware version | V2.9 |
| Product function |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Isochronous mode | Yes; With minimum OB 6x cycle of 625 µs (distributed) |
| Engineering with |
| ● STEP 7 TIA Portal configurable/integrated from version | V17 (FW V2.9) / V13 SP1 Update 4 (FW V1.8) or higher |
| Configuration control |
| via dataset | Yes |
| Display |
| Screen diagonal [cm] | 3.45 cm |
| Control elements |
| Number of keys | 6 |
| Mode selector switch | 1 |
| Supply voltage |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V; 20.4 V DC, for supplying the digital inputs/outputs |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Mains buffering |
| ● Mains/voltage failure stored energy time | 5 ms; Refers to the power supply on the CPU section |
| Input current |
| Current consumption (rated value) | 0.8 A; Digital onboard I/O modules are supplied separately |
| Inrush current, max. | 1.9 A; Rated value |
| I²t | 0.34 A²·s |
| Digital inputs |
| ● from load voltage L+ (without load), max. | 20 mA; per group |
| Digital outputs |
| ● from load voltage L+, max. | 30 mA; Per group, without load |
| output voltage / header |
| Rated value (DC) | 24 V |
| Encoder supply |
| Number of outputs | 2; One common 24 V encoder supply per 16 digital inputs |
| 24 V encoder supply |
| ● 24 V | Yes; L+ (-0.8 V) |
| ● Short-circuit protection | Yes |
| ● Output current, max. | 1 A |
| Power |
| Infeed power to the backplane bus | 10 W |
| Power consumption from the backplane bus (balanced) | 9 W |
| Power loss |
| Power loss, typ. | 15.2 W |
| Memory |
| Number of slots for SIMATIC memory card | 1 |
| SIMATIC memory card required | Yes |
| Work memory |
| ● integrated (for program) | 250 kbyte |
| ● integrated (for data) | 1 Mbyte |
| Load memory |
| ● Plug-in (SIMATIC Memory Card), max. | 32 Gbyte |
| Backup |
| ● maintenance-free | Yes |
| CPU processing times |
| for bit operations, typ. | 48 ns |
| for word operations, typ. | 58 ns |
| for fixed point arithmetic, typ. | 77 ns |
| for floating point arithmetic, typ. | 307 ns |
| CPU-blocks |
| Number of elements (total) | 4 000; Blocks (OB, FB, FC, DB) and UDTs |
| DB |
| ● Number range | 1 ... 60 999; subdivided into: number range that can be used by the user: 1 ... 59 999, and number range of DBs created via SFC 86: 60 000 ... 60 999 |
| ● Size, max. | 1 Mbyte; For DBs with absolute addressing, the max. size is 64 KB |
| FB |
| ● Number range | 0 ... 65 535 |
| ● Size, max. | 250 kbyte |
| FC |
| ● Number range | 0 ... 65 535 |
| ● Size, max. | 250 kbyte |
| OB |
| ● Size, max. | 250 kbyte |
| ● Number of free cycle OBs | 100 |
| ● Number of time alarm OBs | 20 |
| ● Number of delay alarm OBs | 20 |
| ● Number of cyclic interrupt OBs | 20; With minimum OB 3x cycle of 500 µs |
| ● Number of process alarm OBs | 50 |
| ● Number of DPV1 alarm OBs | 3 |
| ● Number of isochronous mode OBs | 1 |
| ● Number of technology synchronous alarm OBs | 2 |
| ● Number of startup OBs | 100 |
| ● Number of asynchronous error OBs | 4 |
| ● Number of synchronous error OBs | 2 |
| ● Number of diagnostic alarm OBs | 1 |
| Nesting depth |
| ● per priority class | 24 |
| Counters, timers and their retentivity |
| S7 counter |
| ● Number | 2 048 |
| Retentivity |
| — adjustable | Yes |
| IEC counter |
| ● Number | Any (only limited by the main memory) |
| Retentivity |
| — adjustable | Yes |
| S7 times |
| ● Number | 2 048 |
| Retentivity |
| — adjustable | Yes |
| IEC timer |
| ● Number | Any (only limited by the main memory) |
| Retentivity |
| — adjustable | Yes |
| Data areas and their retentivity |
| Retentive data area (incl. timers, counters, flags), max. | 128 kbyte; In total; available retentive memory for bit memories, timers, counters, DBs, and technology data (axes): 88 KB |
| Extended retentive data area (incl. timers, counters, flags), max. | 1 Mbyte; When using PS 6 0W 24/48/60 V DC HF |
| Flag |
| ● Size, max. | 16 kbyte |
| ● Number of clock memories | 8; 8 clock memory bit, grouped into one clock memory byte |
| Data blocks |
| ● Retentivity adjustable | Yes |
| ● Retentivity preset | No |
| Local data |
| ● per priority class, max. | 64 kbyte; max. 16 KB per block |
| Address area |
| Number of IO modules | 2 048; max. number of modules / submodules |
| I/O address area |
| ● Inputs | 32 kbyte; All inputs are in the process image |
| ● Outputs | 32 kbyte; All outputs are in the process image |
| per integrated IO subsystem |
| — Inputs (volume) | 8 kbyte |
| — Outputs (volume) | 8 kbyte |
| per CM/CP |
| — Inputs (volume) | 8 kbyte |
| — Outputs (volume) | 8 kbyte |
| Subprocess images |
| ● Number of subprocess images, max. | 32 |
| Hardware configuration |
| Number of distributed IO systems | 32; A distributed I/O system is characterized not only by the integration of distributed I/O via PROFINET or PROFIBUS communication modules, but also by the connection of I/O via AS-i master modules or links (e.g. IE/PB-Link) |
| Number of DP masters |
| ● Via CM | 6; A maximum of 6 CMs/CPs (PROFIBUS, PROFINET, Ethernet) can be inserted in total |
| Number of IO Controllers |
| ● integrated | 1 |
| ● Via CM | 6; A maximum of 6 CMs/CPs (PROFIBUS, PROFINET, Ethernet) can be inserted in total |
| Rack |
| ● Modules per rack, max. | 32; CPU + 31 modules |
| PtP CM |
| ● Number of PtP CMs | the number of connectable PtP CMs is only limited by the number of available slots |
| Time of day |
| Clock |
| ● Type | Hardware clock |
| ● Backup time | 6 wk; At 40 °C ambient temperature, typically |
| ● Deviation per day, max. | 10 s; Typ.: 2 s |
| Operating hours counter |
| ● Number | 16 |
| Clock synchronization |
| ● supported | Yes |
| ● in AS, master | Yes |
| ● in AS, slave | Yes |
| ● on Ethernet via NTP | Yes |
| Digital inputs |
| integrated channels (DI) | 32 |
| Digital inputs, parameterizable | Yes |
| Source/sink input | P-reading |
| Input characteristic curve in accordance with IEC 61131, type 3 | Yes |
| Digital input functions, parameterizable |
| ● Gate start/stop | Yes |
| ● Capture | Yes |
| ● Synchronization | Yes |
| Input voltage |
| ● Type of input voltage | DC |
| ● Rated value (DC) | 24 V |
| ● for signal "0" | -3 to +5V |
| ● for signal "1" | +11 to +30V |
| Input current |
| ● for signal "1", typ. | 2.5 mA |
| Input delay (for rated value of input voltage) |
| for standard inputs |
| — parameterizable | Yes; none / 0.05 / 0.1 / 0.4 / 1.6 / 3.2 / 12.8 / 20 ms |
| — at "0" to "1", min. | 4 µs; for parameterization "none" |
| — at "0" to "1", max. | 20 ms |
| — at "1" to "0", min. | 4 µs; for parameterization "none" |
| — at "1" to "0", max. | 20 ms |
| for interrupt inputs |
| — parameterizable | Yes; Same as for standard inputs |
| for technological functions |
| — parameterizable | Yes; Same as for standard inputs |
| Cable length |
| ● shielded, max. | 1 000 m; 600 m for technological functions; depending on input frequency, encoder and cable quality; max. 50 m at 100 kHz |
| ● unshielded, max. | 600 m; for technological functions: No |
| Digital outputs |
| Type of digital output | Transistor |
| integrated channels (DO) | 32 |
| Current-sourcing | Yes; Push-pull output |
| Short-circuit protection | Yes; electronic/thermal |
| ● Response threshold, typ. | 1.6 A with standard output, 0.5 A with high-speed output; see manual for details |
| Limitation of inductive shutdown voltage to | -0.8 V |
| Controlling a digital input | Yes |
