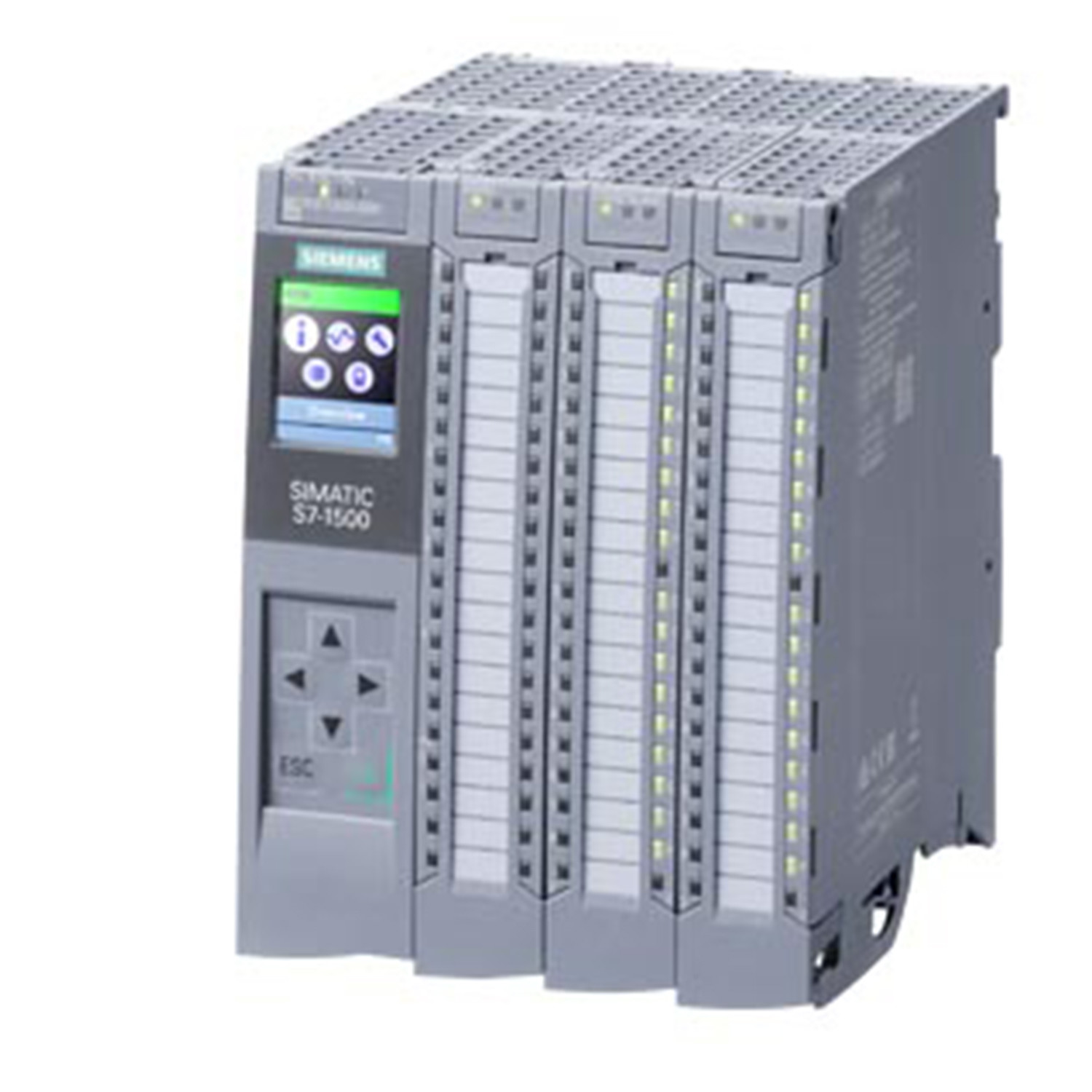

SIEMENS 6ES7512-1CK01-0AB0 PROFINET IRT WITH 2 PORT SWITCH, 48 NS BIT-PERFORMANCE, INCL. FRONT CONNECTOR PUSH-IN,

Name: SIEMENS 6ES75121CK010AB0 PROFINET IRT WITH 2 PORT SWITCH 48 NS BITPERFORMANCE INCL FRONT CONNECTOR PUSHIN
Brand: SIEMENS
Price: 1 USD

Brand Name : SIEMENS

Model Number : 6ES7512-1CK01-0AB0

Certification : CE

Place of Origin : Germany

MOQ : 1

Price : USD

Payment Terms : L/C, T/T

Supply Ability : 100

Delivery Time : 10-12Days

Packaging Details : 15,10 x 15,40 x 4,60

Memory : Up to 4 MB

Number Of Analog Inputs : Up to 32

Power Supply : 24V DC

Programming Languages : Ladder Logic, Function Block Diagram, Structured Text, SCL

Protection Rating : IP20

Number Of Digital Outputs : Up to 64

Programming Software : TIA Portal

Number Of Communication Modules : Up to 32

Number Of Analog Outputs : Up to 32

Number Of Technology Modules : Up to 32

Communication Protocols : PROFINET, PROFIBUS, Ethernet/IP, Modbus TCP, OPC UA

Number Of Motion Control Axes : Up to 128

Cpu Type : S7-1500

Number Of Digital Inputs : Up to 64

Operating Temperature Range : -20°C to +60°C

Contact Now

SIEMENS 6ES7512-1CK01-0AB0 PROFINET IRT WITH 2 PORT SWITCH, 48 NS BIT-PERFORMANCE, INCL. FRONT CONNECTOR PUSH-IN,

The SIEMENS 6ES7512-1CK01-0AB0 is a central processing unit (CPU) that is part of the SIMATIC S7-1500 automation system. Here are the key details about this CPU:

PROFINET IRT with 2-Port Switch:
- This CPU has a built-in PROFINET interface with an integrated 2-port switch.
- The PROFINET interface supports the PROFINET IRT (Isochronous Real-Time) communication protocol, which enables highly synchronized and deterministic data exchange.
- The 2-port switch allows the CPU to be connected directly to other PROFINET devices without requiring an external switch.

Fast 48 ns Bit Performance:
- This CPU has an extremely fast bit performance of 48 nanoseconds per bit operation.
- The 48 ns bit performance provides very responsive and precise control capabilities for industrial automation applications.

Push-In Front Connector:
- The CPU comes with a push-in front connector for the PROFINET interface.
- This push-in connector provides a convenient and tool-free way to connect PROFINET cables to the CPU.

SIMATIC Memory Card Required:
- Like other SIMATIC S7-1500 CPUs, this model requires a SIMATIC memory card to be inserted for operation.
- The memory card provides storage for the user program, configuration data, and other runtime information.

Other Features:
- Work Memory: 1 MB for program and 5 MB for data
- Part of the modular SIMATIC S7-1500 system
- Programmed using the STEP 7 engineering software

The key distinguishing features of this CPU model are the integrated PROFINET IRT interface with a 2-port switch, the extremely fast 48 ns bit performance, and the push-in front connector.

Compared to the previous 6ES7512-1CK00-0AB0 model, this 6ES7512-1CK01-0AB0 version has the same work memory capacities (1 MB program, 5 MB data), but with an even faster 48 ns bit performance.

These capabilities make the CPU 1512-1 PN an excellent choice for applications that require highly synchronized and deterministic industrial Ethernet communication, combined with extremely fast and responsive control performance.

The 2-port switch and push-in connector provide convenient connectivity options, while the 48 ns bit performance delivers remarkably precise and efficient control for the most demanding industrial automation tasks.

Overall, the 6ES7512-1CK01-0AB0 is a top-of-the-line CPU within the SIMATIC S7-1500 portfolio, designed for advanced industrial automation applications that need the ultimate in communication performance and control responsiveness.

General information
Product type designation		CPU 1512C-1 PN
HW functional status		FS03
Firmware version		V2.9
Product function
● I&M data		Yes; I&M0 to I&M3
● Isochronous mode		Yes; With minimum OB 6x cycle of 625 µs (distributed)
Engineering with
● STEP 7 TIA Portal configurable/integrated from version		V17 (FW V2.9) / V15 (FW V2.5) or higher; with older TIA Portal versions configurable as 6ES7512-1CK00-0AB0
Configuration control
via dataset		Yes
Display
Screen diagonal [cm]		3.45 cm
Control elements
Number of keys		8
Mode buttons		2
Supply voltage
Rated value (DC)		24 V
permissible range, lower limit (DC)		19.2 V; 20.4 V DC, for supplying the digital inputs/outputs
permissible range, upper limit (DC)		28.8 V
Reverse polarity protection		Yes
Mains buffering
● Mains/voltage failure stored energy time		5 ms; Refers to the power supply on the CPU section
Input current
Current consumption (rated value)		0.8 A; Without load; 18.8 A: CPU + load
Current consumption, max.		1 A; Without load; 19 A: CPU + load
Inrush current, max.		1.9 A; Rated value
I²t		0.34 A²·s
Digital inputs
● from load voltage L+ (without load), max.		20 mA; per group
Digital outputs
● from load voltage L+, max.		30 mA; Per group, without load
output voltage / header
Rated value (DC)		24 V
Encoder supply
Number of outputs		2; One common 24 V encoder supply per 16 digital inputs
24 V encoder supply
● 24 V		Yes; L+ (-0.8 V)
● Short-circuit protection		Yes
● Output current, max.		1 A
Power
Infeed power to the backplane bus		10 W
Power consumption from the backplane bus (balanced)		9 W
Power loss
Power loss, typ.		15.2 W
Memory
Number of slots for SIMATIC memory card		1
SIMATIC memory card required		Yes
Work memory
● integrated (for program)		250 kbyte
● integrated (for data)		1 Mbyte
Load memory
● Plug-in (SIMATIC Memory Card), max.		32 Gbyte
Backup
● maintenance-free		Yes
CPU processing times
for bit operations, typ.		48 ns
for word operations, typ.		58 ns
for fixed point arithmetic, typ.		77 ns
for floating point arithmetic, typ.		307 ns
CPU-blocks
Number of elements (total)		4 000; Blocks (OB, FB, FC, DB) and UDTs
DB
● Number range		1 ... 60 999; subdivided into: number range that can be used by the user: 1 ... 59 999, and number range of DBs created via SFC 86: 60 000 ... 60 999
● Size, max.		1 Mbyte; For DBs with absolute addressing, the max. size is 64 KB
FB
● Number range		0 ... 65 535
● Size, max.		250 kbyte
FC
● Number range		0 ... 65 535
● Size, max.		250 kbyte
OB
● Size, max.		250 kbyte
● Number of free cycle OBs		100
● Number of time alarm OBs		20
● Number of delay alarm OBs		20
● Number of cyclic interrupt OBs		20; With minimum OB 3x cycle of 500 µs
● Number of process alarm OBs		50
● Number of DPV1 alarm OBs		3
● Number of isochronous mode OBs		1
● Number of technology synchronous alarm OBs		2
● Number of startup OBs		100
● Number of asynchronous error OBs		4
● Number of synchronous error OBs		2
● Number of diagnostic alarm OBs		1
Nesting depth
● per priority class		24
Counters, timers and their retentivity
S7 counter
● Number		2 048
Retentivity
— adjustable		Yes
IEC counter
● Number		Any (only limited by the main memory)
Retentivity
— adjustable		Yes
S7 times
● Number		2 048
Retentivity
— adjustable		Yes
IEC timer
● Number		Any (only limited by the main memory)
Retentivity
— adjustable		Yes
Data areas and their retentivity
Retentive data area (incl. timers, counters, flags), max.		128 kbyte; In total; available retentive memory for bit memories, timers, counters, DBs, and technology data (axes): 88 KB
Extended retentive data area (incl. timers, counters, flags), max.		1 Mbyte; When using PS 6 0W 24/48/60 V DC HF
Flag
● Size, max.		16 kbyte
● Number of clock memories		8; 8 clock memory bit, grouped into one clock memory byte
Data blocks
● Retentivity adjustable		Yes
● Retentivity preset		No
Local data
● per priority class, max.		64 kbyte; max. 16 KB per block
Address area
Number of IO modules		2 048; max. number of modules / submodules
I/O address area
● Inputs		32 kbyte; All inputs are in the process image
● Outputs		32 kbyte; All outputs are in the process image
per integrated IO subsystem
— Inputs (volume)		8 kbyte
— Outputs (volume)		8 kbyte
per CM/CP
— Inputs (volume)		8 kbyte
— Outputs (volume)		8 kbyte
Subprocess images
● Number of subprocess images, max.		32
Hardware configuration
Number of distributed IO systems		32; A distributed I/O system is characterized not only by the integration of distributed I/O via PROFINET or PROFIBUS communication modules, but also by the connection of I/O via AS-i master modules or links (e.g. IE/PB-Link)
Number of DP masters
● Via CM		6; A maximum of 6 CMs/CPs (PROFIBUS, PROFINET, Ethernet) can be inserted in total
Number of IO Controllers
● integrated		1
● Via CM		6; A maximum of 6 CMs/CPs (PROFIBUS, PROFINET, Ethernet) can be inserted in total
Rack
● Modules per rack, max.		32; CPU + 31 modules
PtP CM
● Number of PtP CMs		the number of connectable PtP CMs is only limited by the number of available slots
Time of day
Clock
● Type		Hardware clock
● Backup time		6 wk; At 40 °C ambient temperature, typically
● Deviation per day, max.		10 s; Typ.: 2 s
Operating hours counter
● Number		16
Clock synchronization
● supported		Yes
● in AS, master		Yes
● in AS, slave		Yes
● on Ethernet via NTP		Yes
Digital inputs
integrated channels (DI)		32
Digital inputs, parameterizable		Yes
Source/sink input		P-reading
Input characteristic curve in accordance with IEC 61131, type 3		Yes
Digital input functions, parameterizable
● Gate start/stop		Yes
● Capture		Yes
● Synchronization		Yes
Input voltage
● Type of input voltage		DC
● Rated value (DC)		24 V
● for signal "0"		-3 to +5V
● for signal "1"		+11 to +30V
