SIEMENS 6SN1118-0DG23-0AA0 SIMODRIVE 611-D CONTROL UNIT 1-AXIS FOR DIGITAL DRIVE FS + RS, DIRECT MEASURING SYSTEM
Okay, here are the details for the Siemens 6SN1118-0DG23-0AA0 SIMODRIVE 611-D Control Unit 1-Axis for Digital Drive:
1. Product Name:
- Siemens 6SN1118-0DG23-0AA0 SIMODRIVE 611-D Control Unit 1-Axis for Digital Drive
2. Product Description:
- This is a Siemens SIMODRIVE 611-D Control Unit that provides 1-axis control functionality for digital drives with direct measuring systems.
3. Key Features:
- Supports one axis of control for digital drives
- Designed for use with direct measuring systems
- Includes functionality for feedback signals (FS) and reference signals (RS)
4. Technical Specifications:
- Axis control: 1 axis
- Supported drive types: Digital drives
- Supported measuring systems: Direct measuring systems
- Feedback signals (FS): Supported
- Reference signals (RS): Supported
- Power supply: 24 V DC
5. Compatibility:
- This SIMODRIVE 611-D Control Unit is compatible with the following Siemens drive and control systems:
- SIMODRIVE 611-D digital drive systems
- SINUMERIK CNC systems
6. Applications:
- Motion control for digital drives in CNC machines and other industrial automation applications
- Integration with Siemens SIMODRIVE 611-D digital drive systems and SINUMERIK CNC systems
- Precise control of axes equipped with direct measuring systems
7. Installation and Usage:
- The SIMODRIVE 611-D Control Unit is designed to be installed and integrated within compatible Siemens drive and control systems.
- It provides one axis of control functionality and interfaces with the direct measuring system on the drive.
- Configuration and programming of the control unit is typically done through the associated Siemens engineering software, such as SIMODRIVE STARTER or SINUMERIK CNC programming tools.
8. Additional Notes:
- The Siemens 6SN1118-0DG23-0AA0 SIMODRIVE 611-D Control Unit is part of the SIMODRIVE 611-D digital drive system and is designed to work seamlessly with other Siemens industrial automation components.
- It offers precise motion control capabilities for digital drives, particularly those used in applications that require direct measuring systems for high-accuracy positioning.
- This control unit is typically utilized in CNC machines, production equipment, and other industrial automation systems that require advanced drive control functionalities.
9. Certifications and Approvals:
- The Siemens 6SN1118-0DG23-0AA0 SIMODRIVE 611-D Control Unit is designed to meet relevant industrial standards and regulations, such as CE marking, but the exact certifications may vary based on the specific application and region of use.
Please let me know if you need any additional details or have further questions.
| Product |
| Article Number | 6SN1118-0DG23-0AA0 |
| Product Description | **spare part** SIMODRIVE 611-D Control Unit 1-axis for digital drive FS + RS, direct measuring system, voltage signals performance control |
| Product family | Not available |
| Product Lifecycle (PLM) | PM490:Start of final year of support |
| PLM Effective Date | Product discontinued since: 30.09.2010 |
| Notes | Product is no longer available If you need assistance please contact our local Siemens office |
| Price data |
| Price Group | S60 |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Material | see also metal factor (further details are available on the help page) |
| Metal Factor | see also metal factor (further details are available on the help page) |
| Delivery information |
| Export Control Regulations | ECCN : 3A225 / AL : 3A225 |
| Estimated dispatch time (Working Days) | On request |
| Net Weight (kg) | 1,000 Kg |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | 4025515013785 |
| UPC | Not available |
| Commodity Code | 85049090 |
| LKZ_FDB/ CatalogID | SD91.NC60 |
| Product Group | 9313 |
| Group Code | R2S3 |
| Country of origin | Germany |
|
|

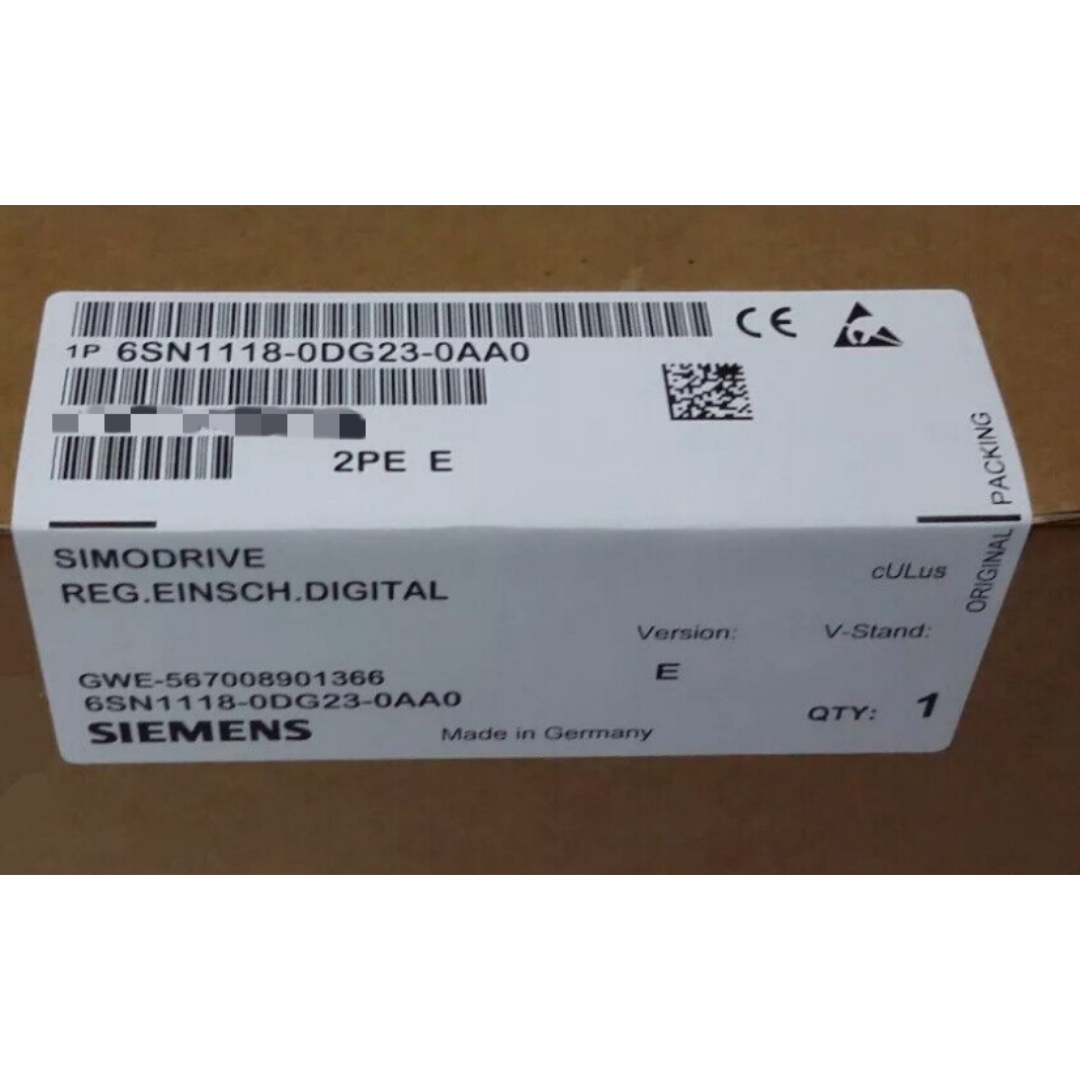

SIEMENS 6SN1118-0DG23-0AA0 SIMODRIVE 611-D CONTROL UNIT 1-AXIS FOR DIGITAL DRIVE FS + RS, DIRECT MEASURING SYSTEM Images
|
