SIEMENS 6SN1118-0NK01-0AA1 SIMODRIVE 611 UNIVERSAL HRS CONTROL UNIT, 2-AX, N-SET
Okay, here are the key details for the Siemens 6SN1118-0NK01-0AA1 SIMODRIVE 611 UNIVERSAL HRS CONTROL UNIT, 2-AX, N-SET:
1. Product Overview:
- This is a 2-axis universal control unit from the Siemens SIMODRIVE 611 digital drive system.
- It is part of the UNIVERSAL HRS (High Resolution Speed) series, designed for precise speed control of AC motors using a resolver feedback system.
2. Key Features:
- 2-axis control functionality
- Resolver-based speed control (N-Set mode)
- Integrated power supply and control electronics
- High-resolution speed control for improved performance
3. Technical Specifications:
- Control Axes: 2
- Feedback System: Resolver
- Control Mode: Speed Setpoint (N-Set)
- Power Supply: 3-phase AC
- Control Electronics: Integrated
4. Functionality and Applications:
- The Siemens 6SN1118-0NK01-0AA1 SIMODRIVE 611 UNIVERSAL HRS CONTROL UNIT, 2-AX, N-SET is designed for precise speed control of AC motors in industrial automation and machinery applications.
- It utilizes a resolver feedback system to accurately monitor and control the motor speed in the N-Set (speed setpoint) control mode, providing high-resolution speed control.
- This control unit is suitable for applications such as CNC machines, conveyor systems, packaging machinery, and other industrial automation processes that require accurate and high-performance speed control of AC motors.
5. Integration and Configuration:
- The control unit is designed to be integrated within the SIMODRIVE 611 digital drive system from Siemens.
- It can be configured and programmed using the Siemens engineering software, such as SIMODRIVE Startdrive or SINUMERIK CNC programming tools.
- The integration with the SIMODRIVE 611 system allows for seamless communication and control of the motor drives.
6. Advantages:
- 2-axis control functionality for improved productivity and efficiency
- Resolver-based speed control for precise and high-resolution speed regulation
- Integrated power supply and control electronics for a compact design
- Seamless integration with the SIMODRIVE 611 digital drive system
- Suitable for a wide range of industrial automation and machinery applications
7. Certifications and Approvals:
- The Siemens 6SN1118-0NK01-0AA1 SIMODRIVE 611 UNIVERSAL HRS CONTROL UNIT, 2-AX, N-SET is designed to meet relevant industrial standards and regulations, such as CE marking, but the exact certifications may vary based on the specific application and region of use.
Please let me know if you need any additional information or have further questions about this Siemens control unit.
| Product |
| Article Number | 6SN1118-0NK01-0AA1 |
| Product Description | ***SPARE PART*** SIMODRIVE 611 U HR 2-AXIS CONTROL-LOOP BLOCK RESOLVER SPEED/TORQUE SETPOINT EXPANDABLE BY OPTIONS |
| Product family | Not available |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| PLM Effective Date | Product is cancelled since: 01.04.2015 |
| Notes | This product is a spare part product. More information you'll get via "Alternative Buying Options". If you need assistance please contact our local Siemens office |
| Price data |
| Price Group | S60 |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Material | see also metal factor (further details are available on the help page) |
| Metal Factor | see also metal factor (further details are available on the help page) |
| Delivery information |
| Export Control Regulations | ECCN : N / AL : 3A225 |
| Estimated dispatch time (Working Days) | 1 Day(s) |
| Net Weight (kg) | 0,800 Kg |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | 4019169392006 |
| UPC | 662643069242 |
| Commodity Code | 85049090 |
| LKZ_FDB/ CatalogID | SD.NC60 |
| Product Group | 9313 |
| Group Code | R2S3 |
| Country of origin | Germany |
|
|

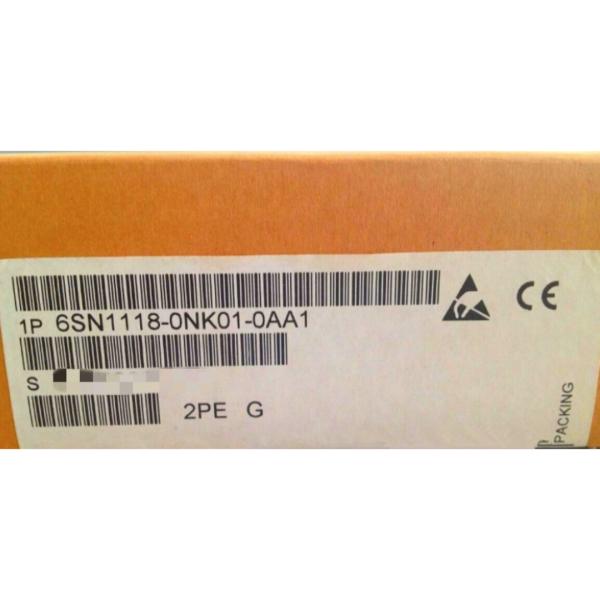

SIEMENS 6SN1118-0NK01-0AA1 SIMODRIVE 611 UNIVERSAL HRS CONTROL UNIT, 2-AX, N-SET Images
|
