Here are the key details on the Siemens 6EP1961-2BA31 SITOP PSE200U 3 A selectivity module:

1. Product Overview:
- The Siemens 6EP1961-2BA31 is a SITOP PSE200U 3 A selectivity module.
- It provides a 4-channel power distribution and selectivity solution with a 24 V DC input and 4 x 3 A outputs.

2. Key Features:
- Input Voltage: 24 V DC
- Input Current: 12 A
- Output Voltage: 24 V DC
- Output Current: 4 x 3 A
- Number of Channels: 4
- Selectivity Function: Selective disconnection of individual load circuits

3. Technical Specifications:
- Input Voltage: 24 V DC
- Input Current: 12 A
- Output Voltage: 24 V DC
- Output Current: 4 x 3 A
- Number of Channels: 4
- Dimensions (W x H x D): Compact design for space-saving installation
- Mounting: DIN rail mounting

4. Functionality and Applications:
- The SITOP PSE200U 3 A selectivity module 6EP1961-2BA31 is designed to provide selective power distribution and protection for 24 V DC industrial applications.
- It is typically used in conjunction with SITOP power supplies and other 24 V DC power distribution systems to ensure reliable and selective power delivery to multiple loads or circuits.
- The 4-channel design allows for the independent control and monitoring of individual load circuits, enabling selective disconnection in the event of a fault or overload.
- The selectivity function helps to maintain the operation of the overall system by isolating the affected circuit while preserving power to the remaining loads.

5. Integration and Configuration:
- The Siemens 6EP1961-2BA31 SITOP PSE200U 3 A selectivity module is designed for easy integration into industrial control systems.
- It mounts on a DIN rail, allowing for flexible installation in control cabinets and other enclosures.
- The selectivity module connects to the 24 V DC output of the SITOP power supply and distributes the power to the individual load circuits.
- Configuration and setup of the SITOP PSE200U 3 A selectivity module are typically done as part of the overall system design and commissioning process, including the selection of appropriate protection settings and monitoring thresholds.

6. Advantages:
- Provides selective power distribution and protection for 24 V DC industrial applications
- Supports up to 4 independent load circuits with 3 A per channel
- Enhances the reliability and fault tolerance of industrial control systems
- Allows for selective disconnection of individual load circuits in the event of a fault or overload
- Helps maintain the operation of the overall system by isolating affected circuits
- Compact, DIN rail-mounted design for space-saving installation
- Seamless integration with Siemens SITOP power supplies and other 24 V DC systems

7. Certifications and Approvals:
- The Siemens 6EP1961-2BA31 SITOP PSE200U 3 A selectivity module is designed to meet relevant safety and quality standards for industrial applications.
- Additional certifications may be available based on specific regional or application requirements.

Please let me know if you need any further details on this Siemens SITOP selectivity module.

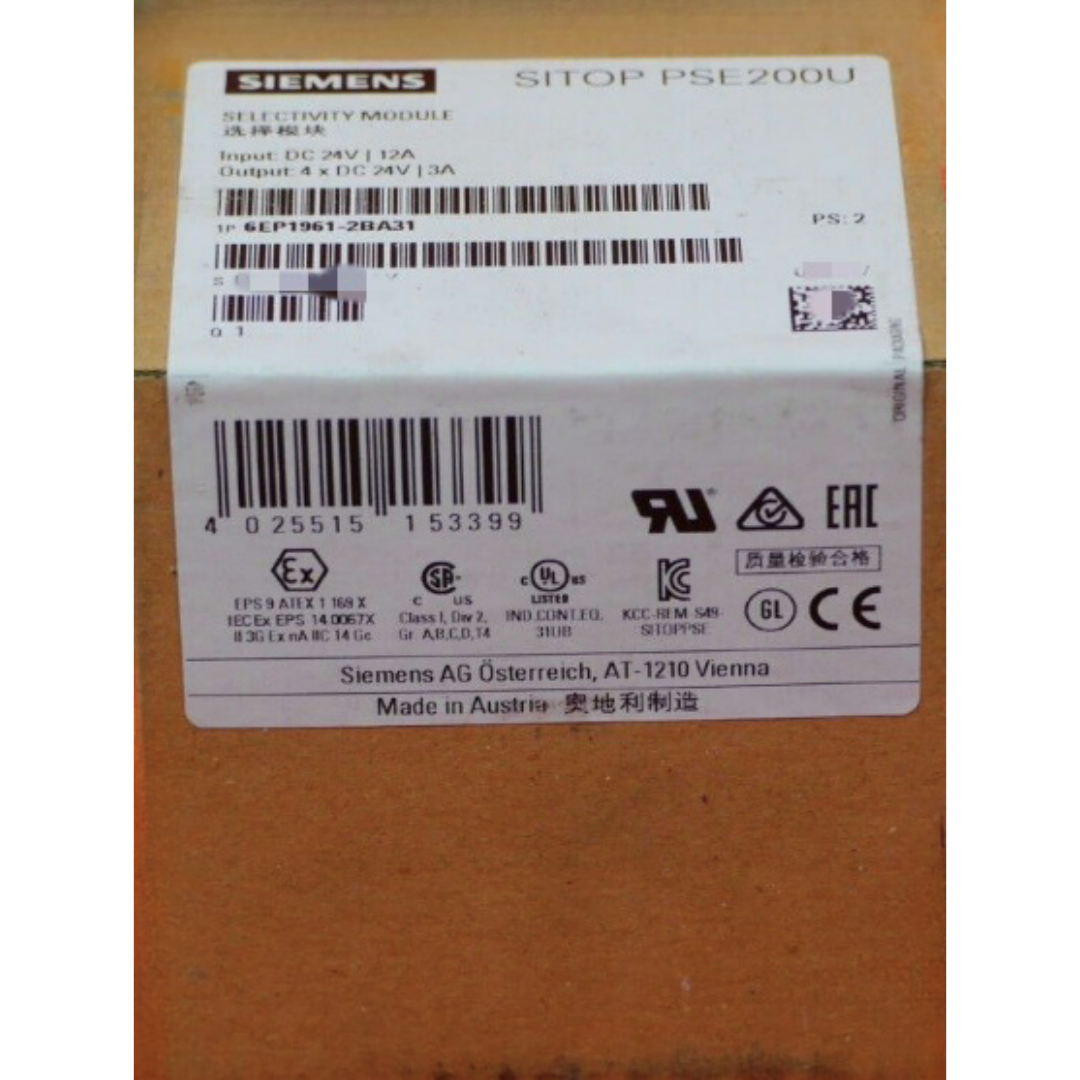

SIEMENS 6EP1961-2BA31 SITOP PSE200U 3 A SELECTIVITY MODULE 4-CHANNEL INPUT: 24 V DC/12 A OUTPUT: 24 V DC/4X 3 A Images
