SIEMENS 6SN1113-1AB01-0BA1 SIMODRIVE 611 PULSED RESISTOR, 0.3/25KW RESISTANCE FOR 0.3/25 KW UNIVERSAL HOUSING FOR 211/28
The Siemens 6SN1113-1AB01-0BA1 is a pulsed resistor module designed for use with the SIMODRIVE 611 drive system. It is a universal housing variant of the 0.3/25 KW pulsed resistor, suitable for use with SIMODRIVE 211/28 series drives.
Key details about the Siemens 6SN1113-1AB01-0BA1 pulsed resistor module:
1. Overview:
- The 6SN1113-1AB01-0BA1 is a pulsed resistor module for the SIMODRIVE 611 drive system.
- It is a universal housing variant of the 0.3/25 KW pulsed resistor, designed for compatibility with SIMODRIVE 211/28 series drives.
- The pulsed resistor module is used to dissipate energy during braking operations in the SIMODRIVE 611 and SIMODRIVE 211/28 drive systems.
2. Technical Specifications:
- Power rating: 0.3/25 KW
- Voltage range: 3 AC 380 V to 480 V
- Pulse power: 0.3 KW
- Continuous power: 25 KW
- Dimensions (W x H x D): 85 mm x 150 mm x 220 mm
- Mounting: Screw-on mounting
3. Features and Benefits:
- Designed for use with the SIMODRIVE 611 and SIMODRIVE 211/28 drive systems
- Provides a 0.3/25 KW pulsed resistor module in a universal housing
- Dissipates energy during braking operations, protecting the drive system
- Suitable for use with a wide range of SIMODRIVE 211/28 series drives
- Screw-on mounting for secure installation
4. Applications:
- The 6SN1113-1AB01-0BA1 pulsed resistor module is designed for use with the SIMODRIVE 611 and SIMODRIVE 211/28 drive systems.
- It is primarily used to dissipate energy during braking operations in applications that utilize these SIMODRIVE drives, such as:
- Industrial automation and machinery
- Material handling equipment
- Printing and packaging machines
- Hoists and cranes
- Any application that requires the SIMODRIVE 611 or SIMODRIVE 211/28 drive system with braking capabilities
5. Integration and Configuration:
- The 6SN1113-1AB01-0BA1 pulsed resistor module is designed to be easily integrated into the SIMODRIVE 611 and SIMODRIVE 211/28 drive systems.
- It connects directly to the SIMODRIVE drives, providing the necessary braking resistor functionality.
- Configuration and programming of the pulsed resistor module is typically done using the SIMODRIVE engineering software, which allows for parameter adjustments and diagnostics.
6. Certifications and Approvals:
- The Siemens 6SN1113-1AB01-0BA1 pulsed resistor module is designed to meet relevant safety and quality standards for industrial applications, such as CE marking.
- Additional certifications may be available based on specific regional or application requirements.
Please let me know if you need any further details or have any other questions about this pulsed resistor module from Siemens.
| Product |
| Article Number | 6SN1113-1AB01-0BA1 |
| Product Description | ***SPARE PART*** SIMODRIVE 611 PULSED RESISTOR MODULE, INTER. RESISTANCE FOR 0.3/25 KW UNIVERSAL HOUSING FOR 211/288 MM DEPTH |
| Product family | Not available |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| PLM Effective Date | Product is cancelled since: 01.04.2015 |
| Notes | This product is a spare part product. More information you'll get via "Alternative Buying Options". If you need assistance please contact our local Siemens office |
| Price data |
| Price Group | S60 |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Material | see also metal factor (further details are available on the help page) |
| Metal Factor | see also metal factor (further details are available on the help page) |
| Delivery information |
| Export Control Regulations | ECCN : 9N9999 / AL : N |
| Estimated dispatch time (Working Days) | On request |
| Net Weight (kg) | 4,450 Kg |
| Package size unit of measure | Not available |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | 4019169391702 |
| UPC | 662643068917 |
| Commodity Code | 85049090 |
| LKZ_FDB/ CatalogID | SD.NC60 |
| Product Group | 9313 |
| Group Code | R2S3 |
| Country of origin | Germany |
|
|

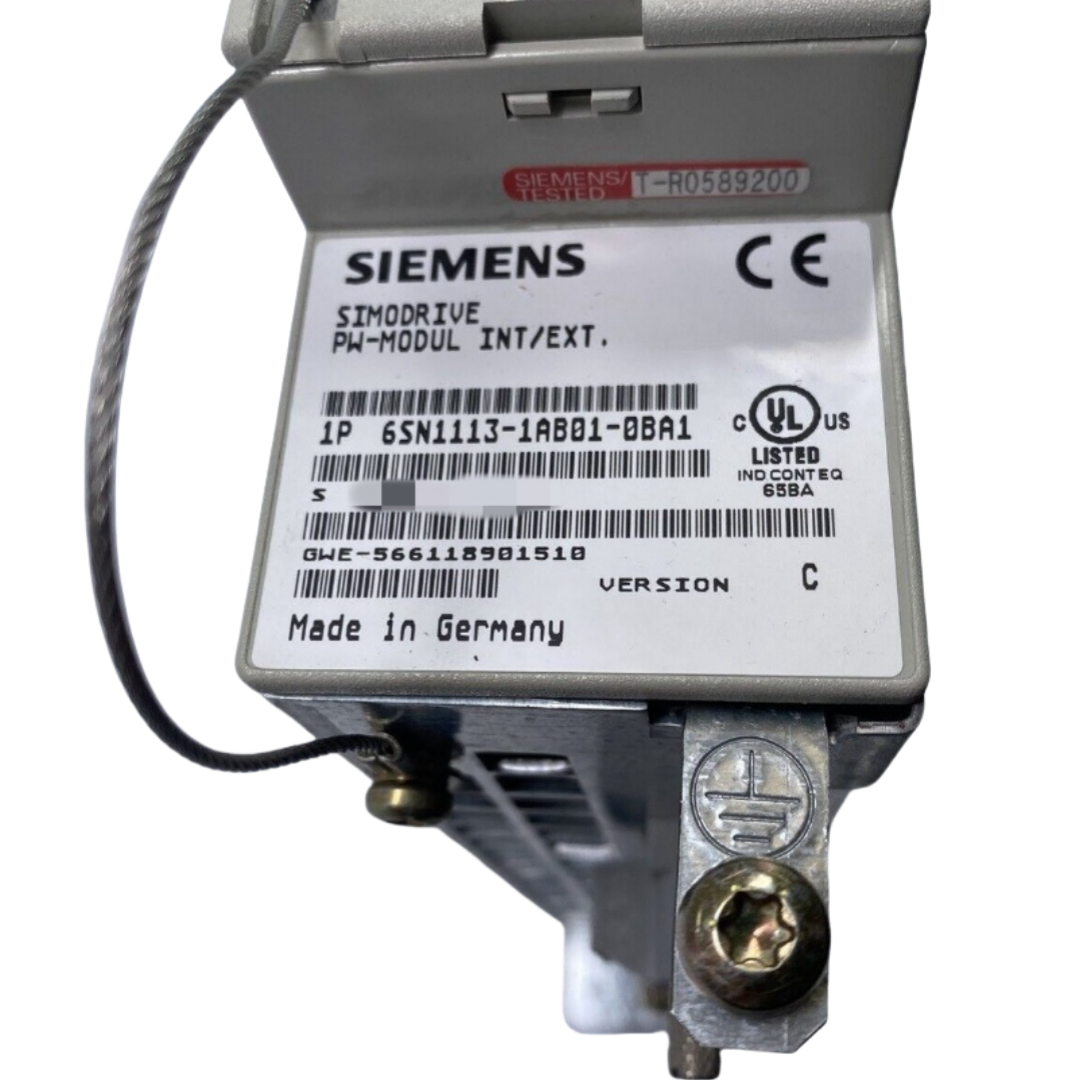

SIEMENS 6SN1113-1AB01-0BA1 SIMODRIVE 611 PULSED RESISTOR, 0.3/25KW RESISTANCE FOR 0.3/25 KW UNIVERSAL HOUSING FOR 211/28 Images
|
