SIEMENS 6EP1333-2BA20 SITOP PSU100S 24 V/5 A STABILIZED POWER SUPPLY INPUT: 120/230 V AC OUTPUT: 24 V DC/5 A
The Siemens 6EP1333-2BA20 is a SITOP PSU100S stabilized power supply unit that provides a 24 V DC output at 5 A. It is designed for a wide range of industrial and commercial applications.
Key details about the Siemens 6EP1333-2BA20 SITOP PSU100S power supply:
1. Overview:
- The 6EP1333-2BA20 is a SITOP PSU100S stabilized power supply unit from Siemens.
- It is a single-phase power supply that takes an input of 120/230 V AC and provides a 24 V DC output at 5 A.
- The SITOP PSU100S power supply is designed for industrial and commercial applications, offering reliable and efficient power conversion.
2. Technical Specifications:
- Input voltage: 120/230 V AC (wide-range input)
- Output voltage: 24 V DC
- Output current: 5 A
- Output power: 120 W
- Dimensions (W x H x D): 50 mm x 90 mm x 55 mm
- Mounting: DIN rail mounting or screw mounting
3. Features and Benefits:
- Wide-range input voltage (120/230 V AC) for global usability
- Stabilized 24 V DC output with 5 A current capacity
- High efficiency and low power loss for energy-saving operation
- Compact and space-saving design suitable for industrial and commercial environments
- DIN rail or screw mounting options for flexible installation
- Overcurrent, overload, and overtemperature protection
- Remote monitoring and control capabilities (optional)
4. Applications:
- The Siemens 6EP1333-2BA20 SITOP PSU100S power supply is suitable for a wide range of industrial and commercial applications, including:
- Automation and control systems
- Machine tools and manufacturing equipment
- Industrial computers and displays
- Building automation and security systems
- Lighting and signage
- Any application requiring a reliable 24 V DC power source up to 5 A
5. Integration and Configuration:
- The SITOP PSU100S power supply is designed for easy integration into various systems and environments.
- It can be easily mounted on a DIN rail or using screw mounting, and connected to the input power and 24 V DC load.
- Optional remote monitoring and control capabilities allow for advanced configuration and diagnostics through various communication interfaces.
6. Certifications and Approvals:
- The Siemens 6EP1333-2BA20 SITOP PSU100S power supply is designed to meet relevant safety and quality standards for industrial and commercial applications, including CE, UL, and other certifications.
- Additional certifications may be available based on specific regional or application requirements.
Please let me know if you need any further details or have any other questions about this Siemens SITOP PSU100S stabilized power supply.
| Product |
| Article Number | 6EP1333-2BA20 |
| Product Description | SITOP PSU100S 24 V/5 A stabilized power supply input: 120/230 V AC output: 24 V DC/5 A |
| Product family | 1-phase, 24 V DC |
| Product Lifecycle (PLM) | PM300:Active Product |
| Price data |
| Price Group | 582 |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Material | see also metal factor (further details are available on the help page) |
| Metal Factor | see also metal factor (further details are available on the help page) |
| Delivery information |
| Export Control Regulations | AL : N / ECCN : N |
| Estimated dispatch time (Working Days) | 1 Day(s) |
| Net Weight (kg) | 0,400 Kg |
| Packaging Dimension | 14,00 x 13,00 x 6,00 |
| Package size unit of measure | CM |
| Quantity Unit | 1 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | 4025515153481 |
| UPC | 887621038632 |
| Commodity Code | 85044083 |
| LKZ_FDB/ CatalogID | KT10-PE |
| Product Group | 4207 |
| Group Code | R315 |
| Country of origin | Austria |
|
|

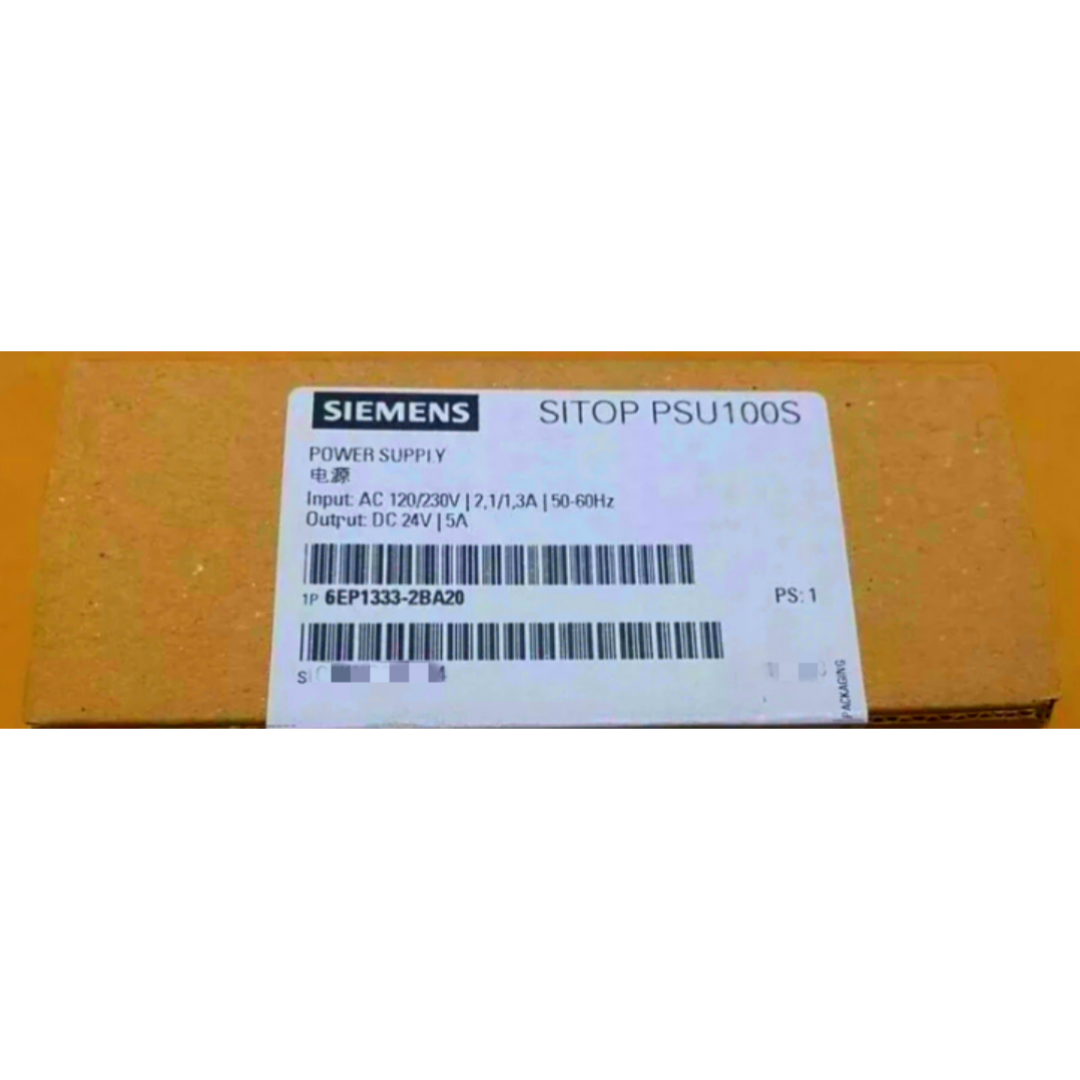

SIEMENS 6EP1333-2BA20 SITOP PSU100S 24 V/5 A STABILIZED POWER SUPPLY INPUT: 120/230 V AC OUTPUT: 24 V DC/5 A Images
|
