SIEMENS 6DD1610-0AG5 SIMADYN D SIMADYN D MEMORY SUBMODULE MS45 16 BIT,512KB RAM,8KB EEPROM
The Siemens 6DD1610-0AG5 is a SIMADYN D memory submodule, specifically the MS45 model. It provides 16-bit memory with 512 KB of RAM and 8 KB of EEPROM.
Here are the key details about the Siemens 6DD1610-0AG5 SIMADYN D MS45 memory submodule:
1. Overview:
- The 6DD1610-0AG5 is a SIMADYN D MS45 memory submodule from Siemens.
- It is designed to provide additional memory capacity for SIMADYN D industrial automation systems.
2. Technical Specifications:
- Model: 6DD1610-0AG5
- Memory Type: 16-bit
- RAM Capacity: 512 KB
- EEPROM Capacity: 8 KB
- Dimensions (W x H x D): 25 mm x 130 mm x 120 mm
- Mounting: Plug-in module for SIMADYN D system
3. Features and Benefits:
- Provides expanded memory capacity for SIMADYN D automation systems.
- 16-bit memory architecture for compatibility with SIMADYN D controllers.
- 512 KB of RAM for program and data storage.
- 8 KB of EEPROM for non-volatile storage of configuration and settings.
- Compact and modular design for easy integration into SIMADYN D systems.
- Allows for increased program complexity and data handling capabilities.
- Enhances the overall performance and functionality of SIMADYN D control systems.
4. Applications:
- The Siemens 6DD1610-0AG5 SIMADYN D MS45 memory submodule is primarily used in the following applications:
- Industrial automation and control systems based on the SIMADYN D platform.
- Process control and manufacturing equipment requiring expanded memory capacity.
- Retrofitting or upgrading existing SIMADYN D systems to increase memory resources.
- Applications with complex control algorithms, large data sets, or extensive program requirements.
5. Integration and Configuration:
- The MS45 memory submodule is designed to be a plug-in module for the SIMADYN D system.
- It is installed directly into the SIMADYN D controller or system rack, providing additional memory capacity.
- The memory submodule is integrated and configured within the SIMADYN D engineering software, allowing for seamless integration with the overall control system.
6. Compatibility and Certifications:
- The Siemens 6DD1610-0AG5 SIMADYN D MS45 memory submodule is designed to be compatible with the SIMADYN D industrial automation platform.
- It meets the relevant safety and quality standards for industrial automation applications, including CE and other certifications.
- The memory submodule is part of the SIMADYN D product family and is supported by Siemens' comprehensive industrial automation solutions and services.
For more detailed information or to discuss specific application requirements, please feel free to reach out to me.
| Product |
| Article Number | 6DD1610-0AG5 |
| Product Description | *** SPARE PART*** SIMADYN D MEMORY SUBMODULE MS45 16 BIT,512KB RAM,8KB EEPROM |
| Product family | Not available |
| Product Lifecycle (PLM) | PM500:Discontinued Product or end of PLM & Support |
| PLM Effective Date | End of product lifecycle since: 01.10.2016 |
| Notes | Product was deleted without replacement. If you need assistance please contact our local Siemens office |
| Price data |
| Price Group | 2AP |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Material | see also metal factor (further details are available on the help page) |
| Metal Factor | see also metal factor (further details are available on the help page) |
| Delivery information |
| Export Control Regulations | ECCN : EAR99H / AL : N |
| Estimated dispatch time (Working Days) | 30 Day(s) |
| Net Weight (kg) | 0,065 Kg |
| Packaging Dimension | 6,50 x 12,00 x 2,00 |
| Package size unit of measure | CM |
| Quantity Unit | 0 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | Not available |
| UPC | 662643265149 |
| Commodity Code | 85049099 |
| LKZ_FDB/ CatalogID | ST9.DA99T |
| Product Group | 4230 |
| Group Code | R111 |
| Country of origin | Germany |
|
|

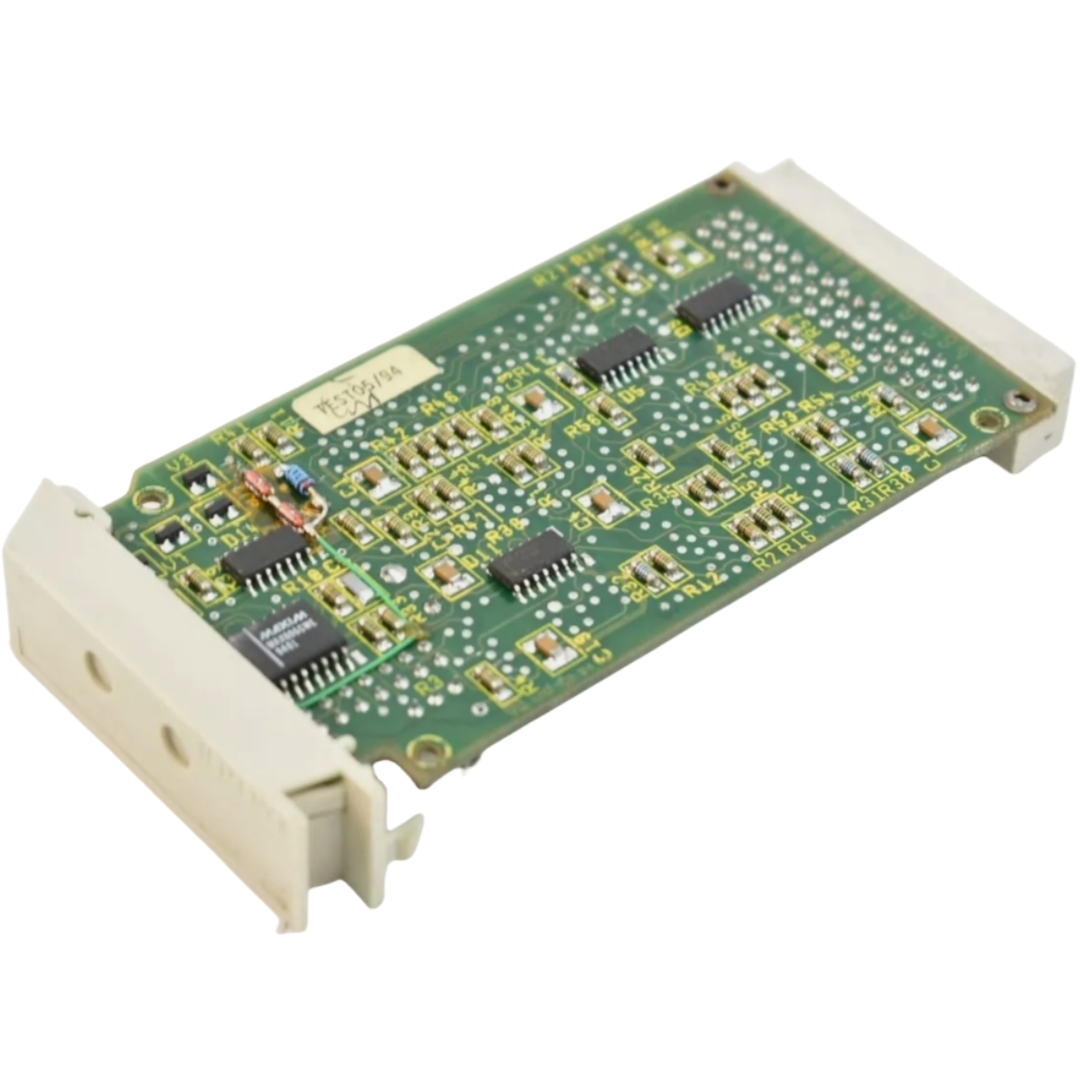

SIEMENS 6DD1610-0AG5 SIMADYN D SIMADYN D MEMORY SUBMODULE MS45 16 BIT,512KB RAM,8KB EEPROM Images
|
