SIEMENS 6DD1641-0AC0 SIMADYN D SIMADYN D BINARY INPUT/OUTPUT MODULE EB11 32BI,32BO
here are the details on the Siemens 6DD1641-0AC0 SIMADYN D Binary Input/Output Module EB11:
Product Details:
- Model Number: 6DD1641-0AC0
- Product Name: SIMADYN D Binary Input/Output Module EB11
Description:
The SIMADYN D Binary Input/Output Module EB11 is a digital I/O module designed for the SIMADYN D distributed control system. It provides a high-density of digital inputs and outputs to interface with various field devices and equipment.
Key Features:
- SIMADYN D Binary Input/Output Module EB11
- 32 digital inputs
- 32 digital outputs
- Robust, industrial-grade design
- Supports distributed control architecture
- Compact and space-saving form factor
Detailed Specifications:
- Digital Inputs: 32
- Digital Outputs: 32
- Input Voltage: 24 VDC
- Output Type: Relay or static
- Power Supply: 24 VDC
- Dimensions (W x H x D): 50 x 150 x 120 mm
- Operating Temperature: 0°C to 55°C
The SIMADYN D Binary Input/Output Module EB11 is a high-density digital I/O module that provides 32 digital inputs and 32 digital outputs in a compact form factor. It is designed to interface with a wide range of field devices, sensors, and actuators commonly found in industrial automation and control applications.
The digital inputs and outputs can be configured for either relay or static switching, providing flexibility in connecting and controlling various types of field devices.
The robust, industrial-grade design of the EB11 module ensures reliable performance and long-term operation, even in challenging environments.
As part of the SIMADYN D distributed control system, the EB11 module seamlessly integrates with the overall control architecture, enabling efficient data exchange and coordinated operation of the connected field devices.
The compact size and high-density of I/O points make the EB11 module well-suited for applications where space is limited, such as in control cabinets or distributed field installations.
Please let me know if you need any additional information on the SIMADYN D Binary Input/Output Module EB11.
| Product |
| Article Number | 6DD1641-0AC0 |
| Product Description | *** SPARE PART*** SIMADYN D BINARY INPUT/OUTPUT MODULE EB11 32BI,32BO |
| Product family | Not available |
| Product Lifecycle (PLM) | PM500:Discontinued Product or end of PLM & Support |
| PLM Effective Date | End of product lifecycle since: 01.10.2017 |
| Notes | Product was deleted without replacement. If you need assistance please contact our local Siemens office |
| Price data |
| Price Group | 2AP |
| List Price | Show prices |
| Customer Price | Show prices |
| Surcharge for Raw Material | see also metal factor (further details are available on the help page) |
| Metal Factor | see also metal factor (further details are available on the help page) |
| Delivery information |
| Export Control Regulations | ECCN : N / AL : N |
| Estimated dispatch time (Working Days) | 30 Day(s) |
| Net Weight (kg) | 0,496 Kg |
| Packaging Dimension | 27,90 x 27,20 x 4,50 |
| Package size unit of measure | CM |
| Quantity Unit | 0 Piece |
| Packaging Quantity | 1 |
| Additional Product Information |
| EAN | Not available |
| UPC | 662643264203 |
| Commodity Code | 85389091 |
| LKZ_FDB/ CatalogID | ST9.DA99T |
| Product Group | 4230 |
| Group Code | R111 |
| Country of origin | Germany |
|
|

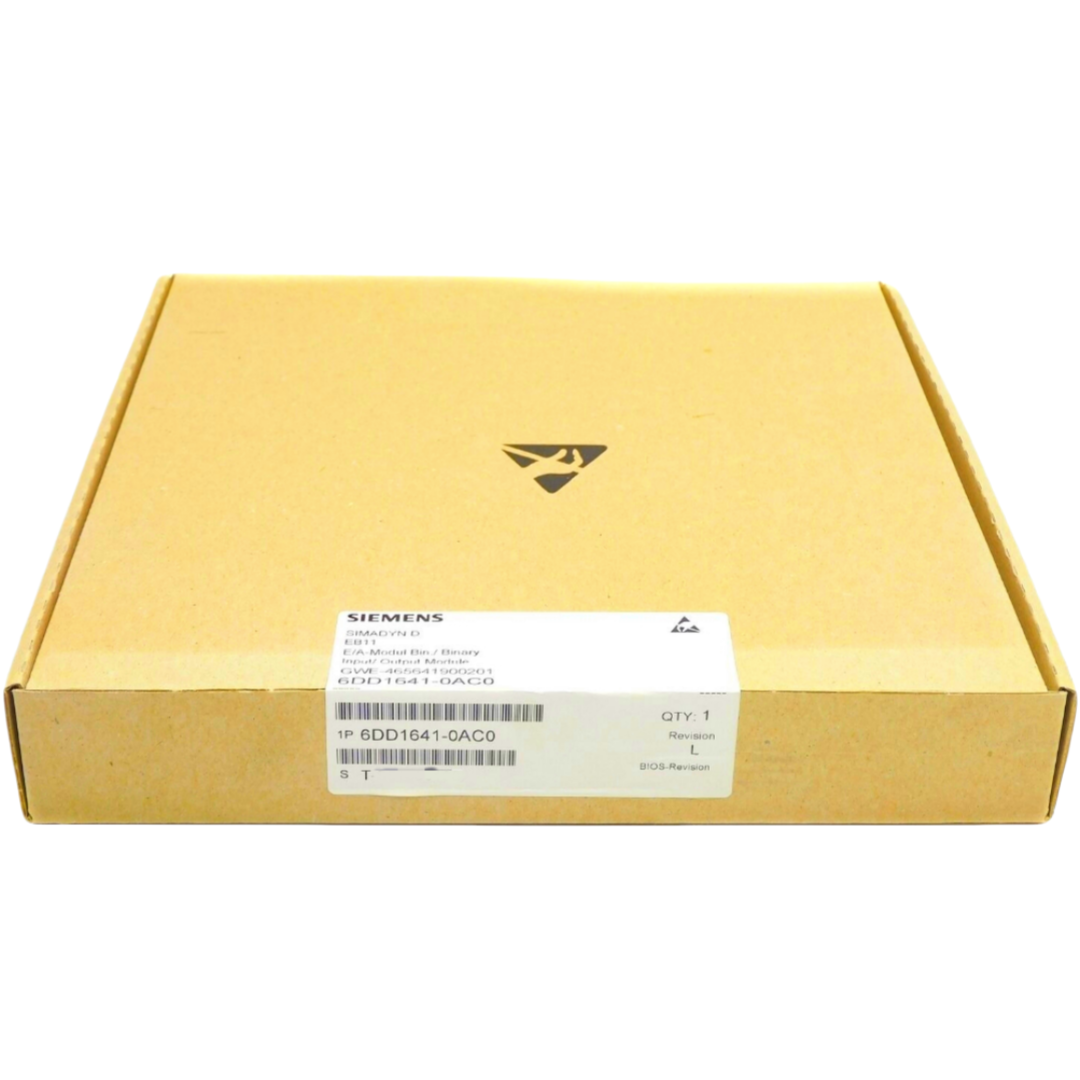

SIEMENS 6DD1641-0AC0 SIMADYN D SIMADYN D BINARY INPUT/OUTPUT MODULE EB11 32BI,32BO Images
|
