Home > SIRIUS 3RW Soft Starters >

SIEMENS 3RW4037-1BB14 SIRIUS SOFT STARTER S2 63 A, 30 KW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC SCREW TERMINALS

Product Categories

PLC SIMATIC S7-300 [273]
SIEMENS SIMATIC PLC [64]
PLC SIMATIC S7-400 [224]
SIEMENS SIMATIC HMI [200]
PLC SIMATIC S7-1200 [94]
SIEMENS SIMATIC Power Supply [166]
PLC SIMATIC S7-1500 [208]
SIEMENS SIMATIC TDC [145]
PLC SIMATIC ET200 [611]
SIEMENS Frequency Converter [1]
SIEMENS Servo Drives [95]
SIEMENS SIMATIC DP [2]
IFM Vacuum Sensors [6]
SIEMENS SIMATIC NET [11]
IFM Pressure Sensors [32]
SIEMENS RFID Reader [12]
IFM Flow Monitor Sensors [5]
SIEMENS Ethernet Cable [16]
IFM Photoelectric Sensors [8]
IFM Temperature Sensors [19]
IFM Flow Meters [2]
SIRIUS 3RW Soft Starters [118]
IFM Cable Connector [11]
IFM Electronic Sensors [2]
Allen Bradley PanelView HMI [14]
LENZE Frequency Converter [42]
Allen Bradley PanelView Plus 6 [1]
LENZE Servo Drives [12]
Allen Bradley PanelView Plus 7 [1]
1734 POINT IO Modules [12]
1756 ControlLogix IO Modules [16]
1769 Compact IO Modules [16]
Stratix 2000 Unmanaged Ethernet Switches [4]

Shenzhen Voboal Industrial Automation Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

SIEMENS 3RW4037-1BB14 SIRIUS SOFT STARTER S2 63 A, 30 KW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC SCREW TERMINALS

Name: SIEMENS 3RW40371BB14 SIRIUS SOFT STARTER S2 63 A 30 KW400 V 40 C 200480 V AC 110230 V ACDC SCREW TERMINALS
Brand: SIEMENS
Price: 1 USD

Brand Name : SIEMENS

Model Number : 3RW4037-1BB14

Certification : CE

Place of Origin : Czech Republic

MOQ : 1

Price : USD

Payment Terms : L/C, T/T

Supply Ability : 100

Delivery Time : 10-12Days

Packaging Details : 212,00 x 197,00 x 73,00CM

Additional Features : Overload and short circuit protection

Rated Operational Voltage : 200-690 V AC

Control Modes : Current limit, torque control, voltage ramp, kick start

Current Limiting : Yes

Motor Load Display : Yes

Protection Class : IP20

Motor Control : Soft Start, Soft Stop, Pump Control

Efficiency : 90%

Communication Interface : Modbus RTU

Communication Interfaces : PROFIBUS, PROFINET, Modbus RTU, Ethernet/IP

Software Tools : SIRIUS Soft Starter ES V15.1 or higher

Braking Torque : Adjustable

Programming : Via keypad or PC software

Starting Torque : Adjustable

Cooling Method : Natural Convection

Contact Now

SIEMENS 3RW4037-1BB14 SIRIUS SOFT STARTER S2 63 A, 30 KW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC SCREW TERMINALS

The **SIEMENS 3RW4037-1BB14 SIRIUS Soft Starter** specifications are as follows:

- **Model:** 3RW4037-1BB14
- **Product Type:** SIRIUS Soft Starter
- **Rated Current:** 63 A
- **Rated Power (at 400 V):** 30 kW
- **Voltage Range:** 200-480 V AC
- **Control Voltage:** 110-230 V AC/DC
- **Terminal Type:** Screw Terminals
- **Operating Temperature:** Up to 40 °C

This soft starter from Siemens is designed to control the starting and stopping of electric motors, providing a gradual increase in voltage to reduce mechanical stress during startup. It is rated for a maximum current of 63 A and a power output of 30 kW at 400 V. The soft starter is compatible with voltage inputs ranging from 200 V to 480 V AC and operates with a control voltage of 110-230 V AC/DC. The terminals are of the screw type, facilitating easy and secure wiring connections. The device is designed to operate within a temperature range of up to 40 °C.

Product
Article Number	3RW4037-1BB14
Product Description	SIRIUS soft starter S2 63 A, 30 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals
Product family	3RW40 soft starters
Product Lifecycle (PLM)	PM300:Active Product
Price data
Price Group	42G
List Price	Show prices
Customer Price	Show prices
Surcharge for Raw Material	see also metal factor (further details are available on the help page)
Metal Factor	LAO-----
Delivery information
Export Control Regulations	AL : N / ECCN : EAR99
Estimated dispatch time (Working Days)	3 Day(s)
Net Weight (kg)	1,273 Kg
Packaging Dimension	212,00 x 197,00 x 73,00
Package size unit of measure	MM
Quantity Unit	1 Piece
Packaging Quantity	1
Additional Product Information
EAN	4011209692077
UPC	Not available
Commodity Code	85371098
LKZ_FDB/ CatalogID	CC-IC10
Product Group	3727
Group Code	R711
Country of origin	Czech Republic

SIEMENS 3RW4037-1BB14 SIRIUS SOFT STARTER S2 63 A, 30 KW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC SCREW TERMINALS

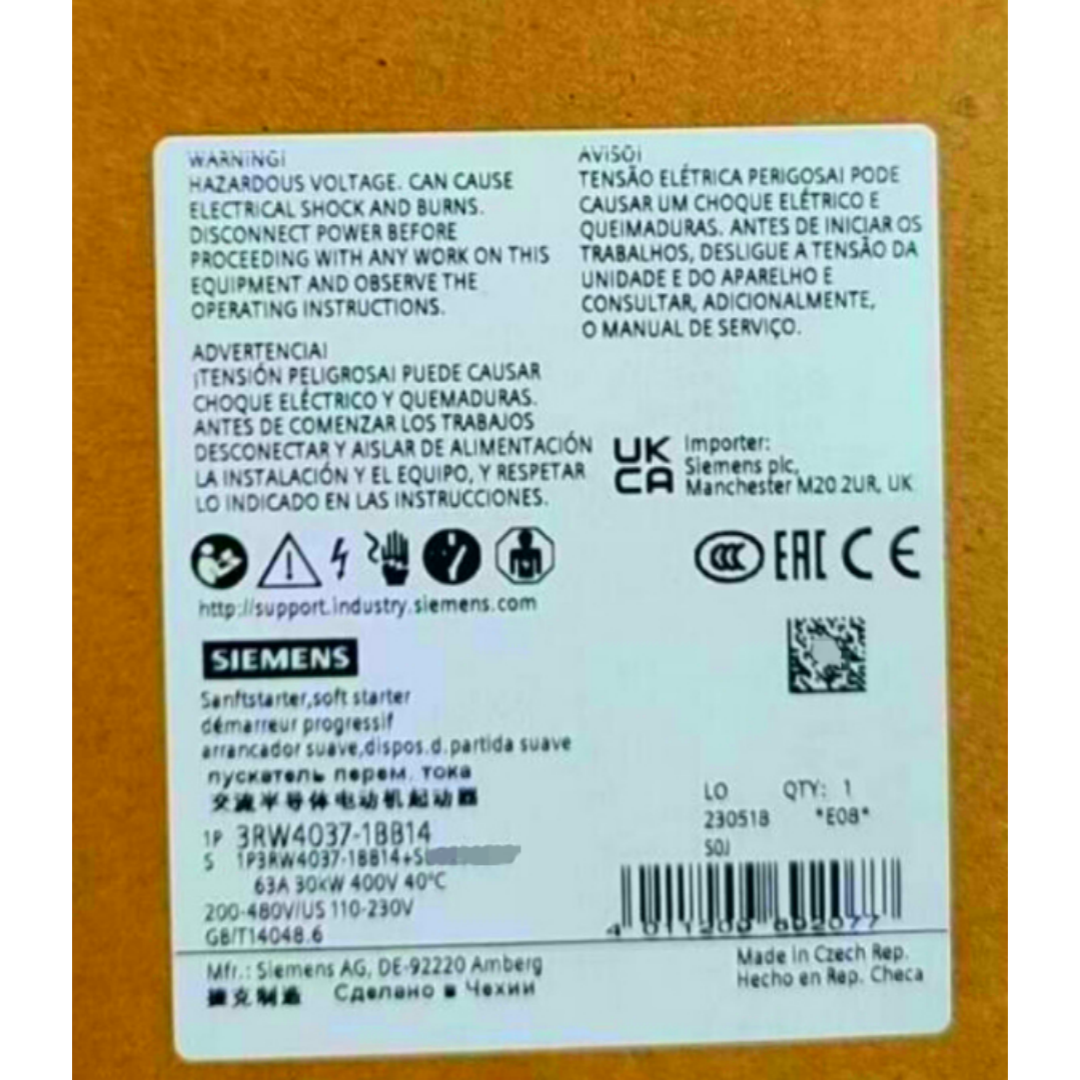

SIEMENS 3RW4037-1BB14 SIRIUS SOFT STARTER S2 63 A, 30 KW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC SCREW TERMINALS Images
